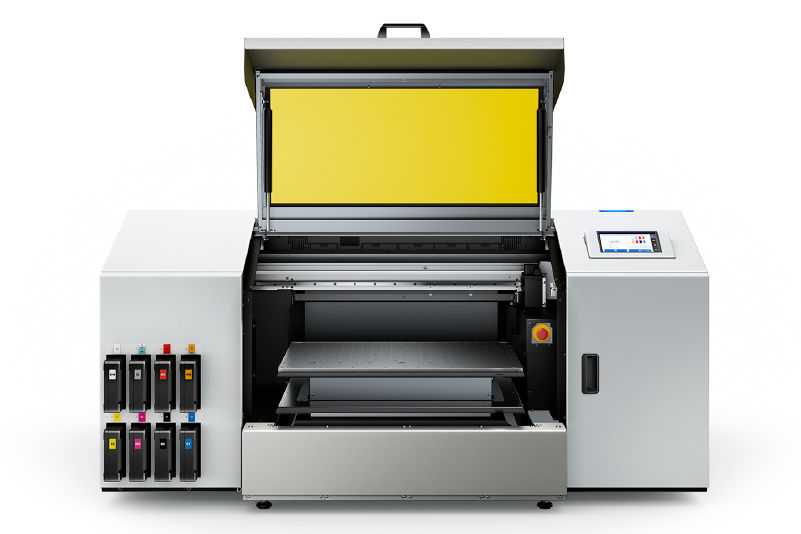

High Productivity, Authentic Quality
VersaOBJECT MO Series Flatbed UV Printer
Expand your business with high-definition, high-speed digital printing thanks to the VersaOBJECT MO Series. Our advanced UV flatbed printers give you the power to dominate a growing direct-print market through:
- High-Definition Print: Reproduce small letters, fine textures, gradations, and colour-matched graphics with ease.
- High Productivity: Do more with staggered printheads, powerful UV lamps, and an A2 or A3 print bed.
- Greater Flexibility: Print up to 204 mm, as standard and unlock cylindrical items with an optional attachment.
- Intuitive Interface: Now with touchscreen control and more powerful, easy-to-use VersaWorks software.

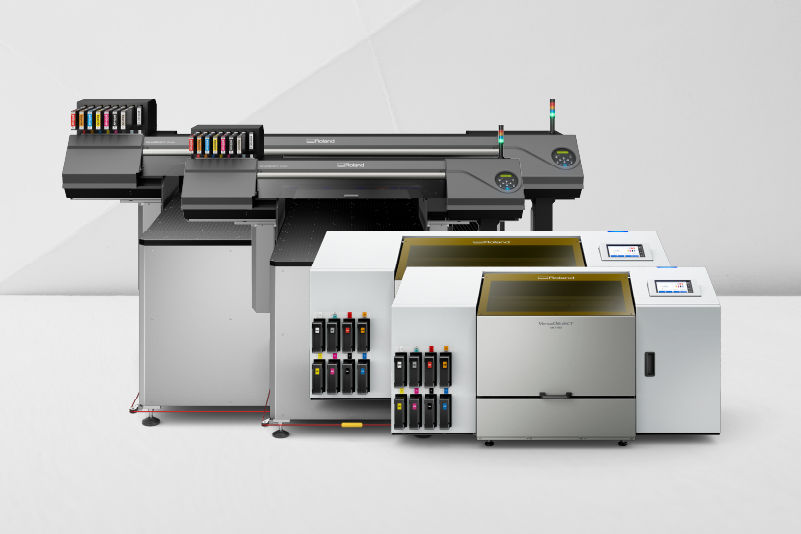

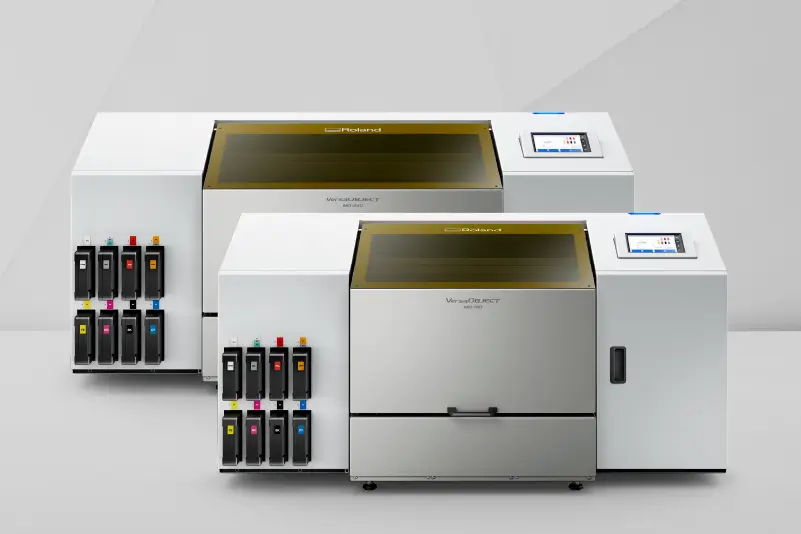

MO Series Lineup
Orange, Primer
Orange, Primer
Frequently Asked Questions
What business need does the Roland VersaOBJECT MO Series address?
The Roland VersaOBJECT MO Series is designed for businesses that need to print directly onto objects, parts and rigid substrates with more control than outsourced or analogue processes can usually provide.
For a business, the main value is not only the ability to print on objects. It is the ability to bring more short-run, personalised, high-mix work in-house, reduce dependence on external suppliers, and respond faster when customers request customised products, samples, panels, labels, promotional items, or industrial components.
How does the MO Series improve productivity in daily production?
The MO Series improves productivity by combining staggered printheads, UV-LED curing, an A2 or A3 print bed, touchscreen operation and VersaWorks 7 workflow software. These features help the operator move from job preparation to output with fewer production bottlenecks.
In practical terms, this means the business can print more items per run, manage repeat work more efficiently and handle urgent or variable jobs with greater confidence. Productivity here is not just about print speed. It is also about reducing friction across the whole workflow.

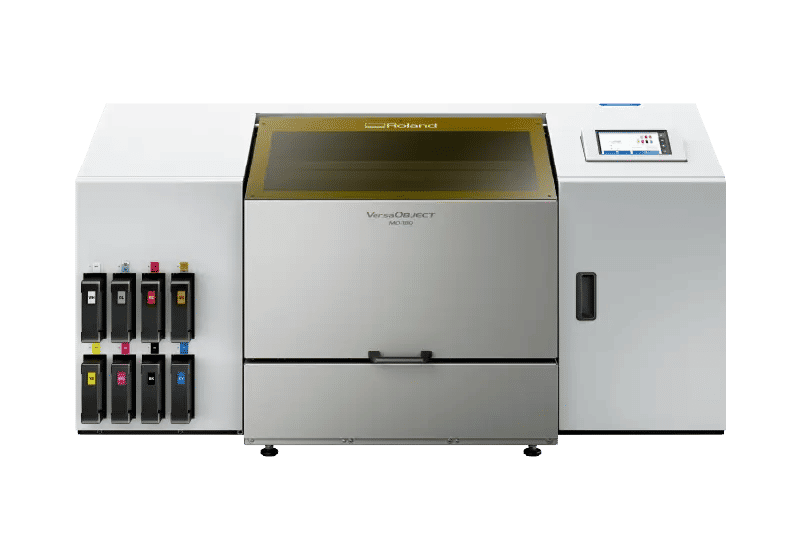

Who is the VersaOBJECT MO-180 best suited for?
The VersaOBJECT MO-180 is best suited for businesses that have moved beyond entry-level direct-to-object printing and need a compact, production-ready UV flatbed system. This includes small and growing personalisation businesses, promotional product suppliers, sign and graphics companies, and existing LEF or LEF2 users who want a clear step-up in productivity, application range, and workflow control.
With a 458 × 305 mm print area and support for objects up to 204 mm high, the MO-180 is not simply a smaller UV printer. It brings the core MO Series production platform into a more compact table size, making it suitable for larger batches and jig-based workflows when the objects being printed do not require the wider MO-240 bed. For companies that need professional-quality, repeatable output and higher daily throughput but do not need A2-scale capacity, the MO-180 is the more focused investment.

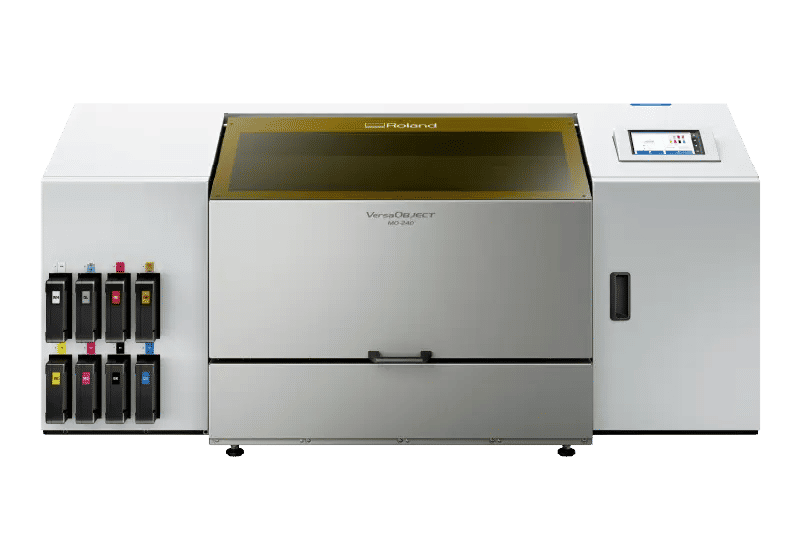

Who is the VersaOBJECT MO-240 best suited for?
The VersaOBJECT MO-240 is the stronger fit for businesses with higher production demand, larger batches or more frequent jig-based work. It is well-suited to busy graphics providers, promotional goods suppliers, sign companies and industrial environments where direct printing is part of a more regular production flow.
With a 610 × 458 mm print area, the MO-240 provides the business with more room to produce multiple items in a single cycle and handle larger or more demanding jobs. The benefit is not simply a bigger bed. It is a better capacity when throughput, scheduling and repeatability matter every day.
What types of applications can the MO Series support?

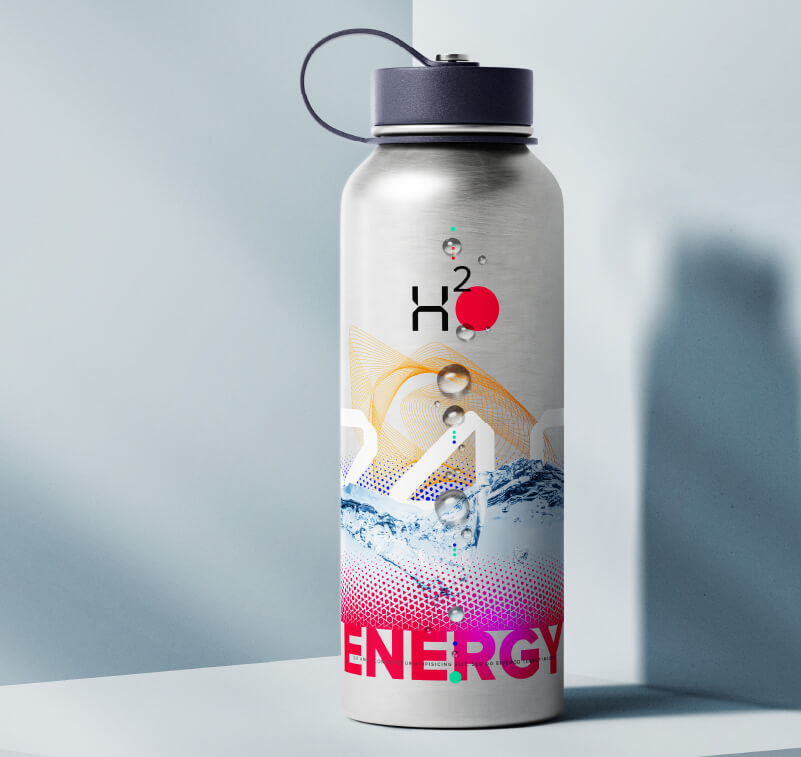

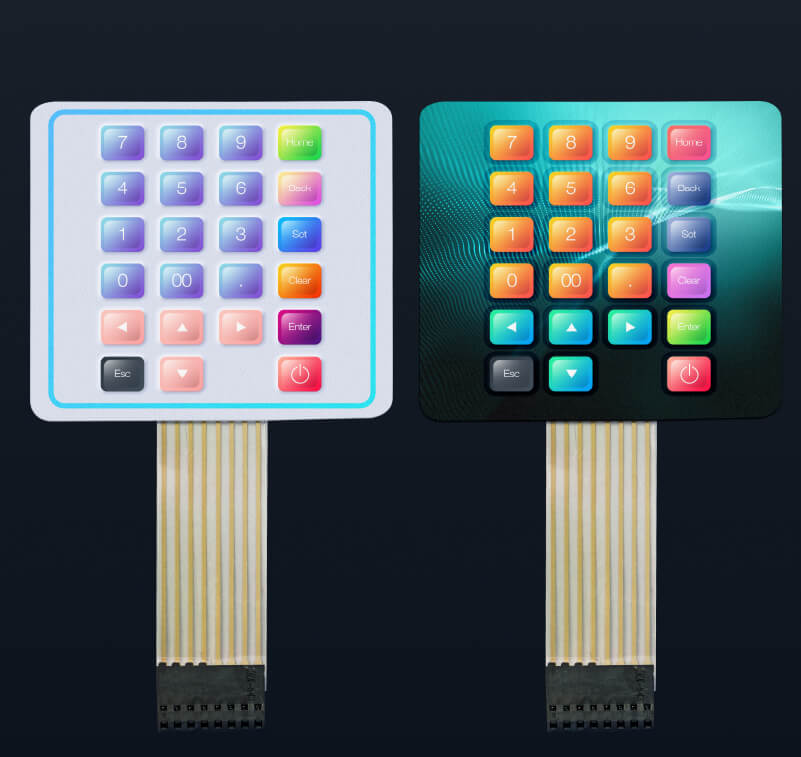

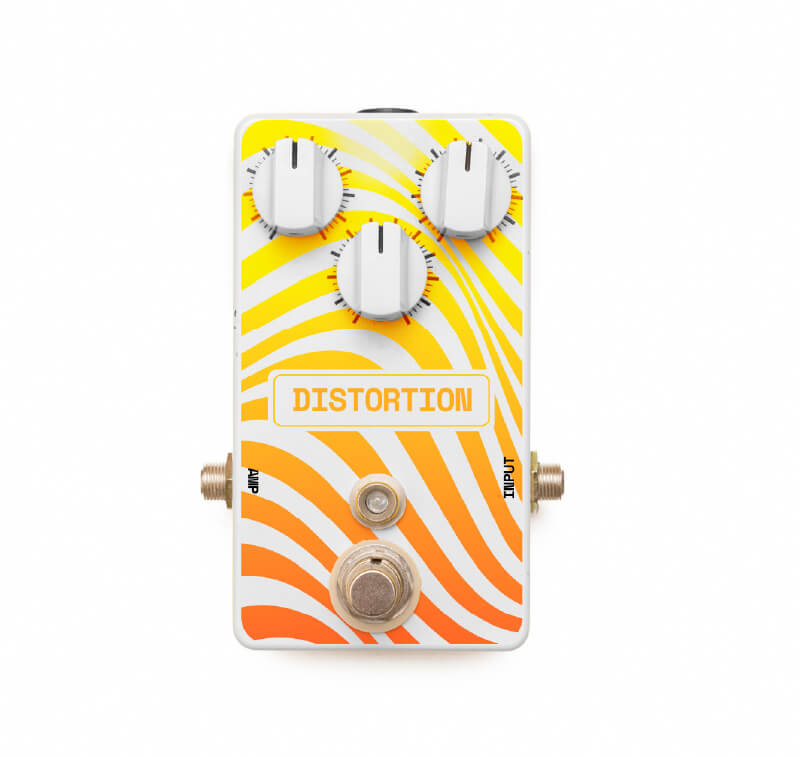

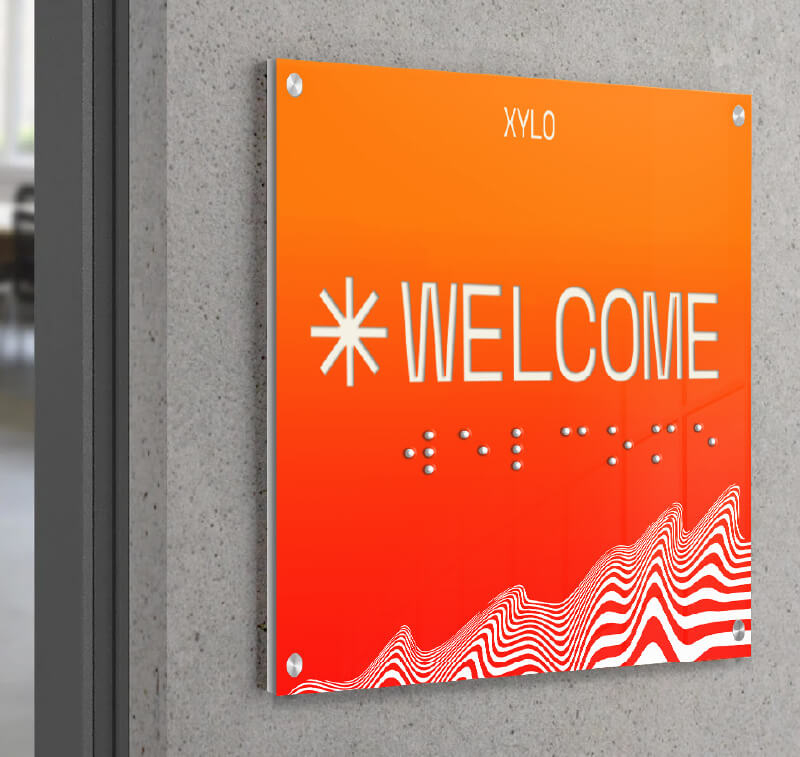

The MO Series supports a wide range of direct-to-object UV applications, including nameplates, control panels, electronic items, phone cases, signage, packaging samples, promotional products, awards, bottles, flasks and customised components.
This matters commercially because a single printer can support multiple revenue streams. A business can use the MO Series for personalised products, short-run production, prototypes, internal parts, branded objects and premium decorative effects. As with any UV printing process, material testing and correct preparation remain important, especially for demanding substrates or production-critical work.
Why do white, gloss, red, orange and primer inks matter?
White ink helps produce strong results on dark or transparent materials. Gloss ink allows you to add clear, matte, textured, and raised effects. Red and orange inks expand the colour range, which is useful when vivid graphics or brand-sensitive colours matter. Primer can improve adhesion on more challenging materials.
The business benefit is clear: the MO Series is not limited to basic object decoration. It helps companies offer higher-value work, from sharper product branding to tactile finishes and more distinctive personalised items. That can make direct-to-object printing easier to sell as a premium service, rather than a low-margin add-on.
Why is the MO Series a credible long-term investment for a business?
The MO Series is built as a complete production solution, not just as a printer. The hardware is supported by VersaWorks 7 RIP software, Roland DG Connect monitoring and additional workflow tools such as PrintAutoMate and the Object Decoration Module, which can help teams prepare repeat jobs, position artwork more accurately and manage object printing with fewer manual steps.
For a cautious buyer, this matters. A direct-to-object printer has to become part of daily production, not just an occasional creative tool. The MO Series supports that goal by combining print capability, workflow control, monitoring and operator-friendly usability. The result is a more dependable way to add UV object printing to the business while keeping quality, scheduling and process control under tighter management.
Everything You Need to Succeed
The latest and most advanced UV printer for your business
Power your workflow with our most intelligent engine yet
Get stunning results every time with economical Eco UV ink
Secure your investment with industry-leading support

High-Definition Print
Newly developed print heads and LED lamp technology, coupled with advanced software and industry-leading inks give you the power to reproduce small letters, fine textures, gradations, and colour-matched graphics with ease. Furthermore, Orange and Red inks extend your achievable gamut letting you hit colours that previously could not be reproduced.
Whether you need vibrant image reproduction, high-opacity white ink, or the ability to print textures, the MO Series UV printers have the answer.

High Productivity
The MO Series is engineered to deliver high productivity with print speeds up to approximately 1.4 times faster than comparable models from other brands. The staggered print head configuration, powerful lamps and increased bed-size deliver printing speeds of up to 2.39 m2/h in standard mode*, letting you get more done. Denser white ink means you can print white twice as fast as previous models and Gloss ink can now be printed in thicker layers, doubling the speed.
Improvements to the setup process make it easier to switch between products and jigs of items with ease. The included software also lets you unlock unprecedented productivity with multi-layer printing, meaning that you can outperform your competition when printing on almost any substrate.
*MO-240 only

Greater Flexibility
Roland DG's EUV5 ink is renowned for its broad material compatibility and excellent adhesion. With just one ink formulation, you can print onto a variety of substrates, increasing your ability to adapt to changing market demands.
The MO Series also allows you to go beyond flat substrates thanks to built-in technologies including ‘distance mode’ printing and optional extras such as the rotary printing unit. With these features you can go even further with direct printing and move towards new opportunities.

Excellent Usability
Roland DG's solutions are designed for easy installation, set up and operation. You can confidently operate these professional devices with a quick learning curve thanks to the user-friendly 7-inch touchscreen and intuitive VersaWorks 7 RIP software.

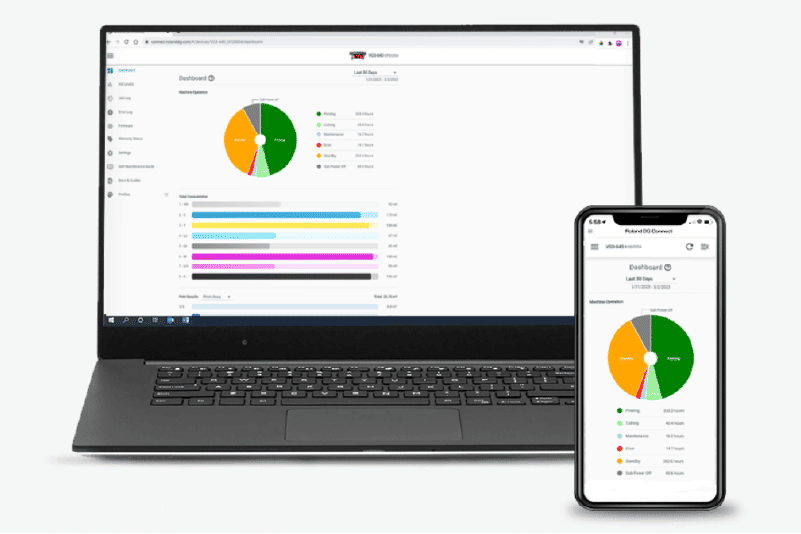

With the Roland DG Connect device monitoring app, you can also get real-time data about your print workflow, letting you schedule maintenance and improve profitability.

You're the Designer Roland DG Connect Designer
Take control of your file design with Roland DG Connect Designer: Object Designer Module. Prepare print-ready layouts for direct-to-object production with tools designed to help you create files, position artwork accurately, and build repeatable templates before sending to print, wherever you are.
Get Started Today.
Highlighted Features

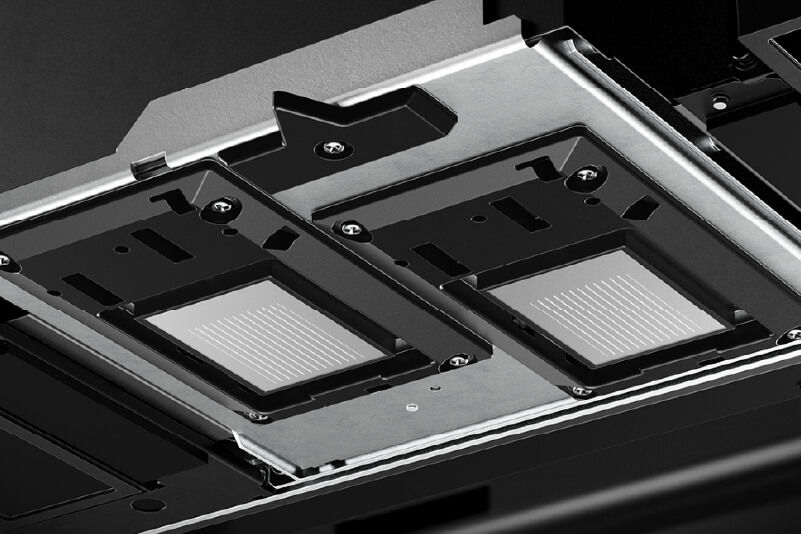

Staggered Print Heads
Achieve faster printing speeds than ever before with our new large print heads in a staggered array to accelerate CMYK, white and special effects printing.

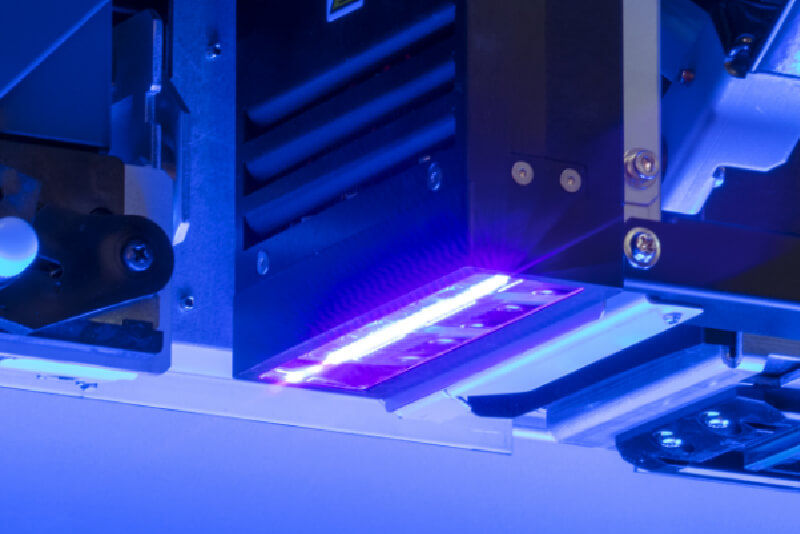

UV Lamps
Our newly developed UV curing lamps, three times more powerful than conventional lamps, cure and fix the ink in a shorter period of time, enabling increased productivity, whilst maintaining high definition printing.

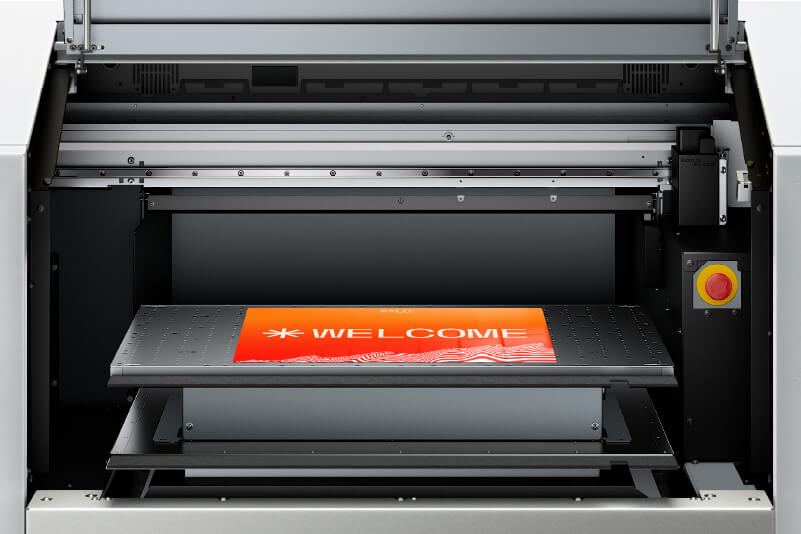

Vacuum Bed
The MO Series includes a vacuum bed as standard, which lets you print on a wider range of substrates including thinner, more flexible materials.

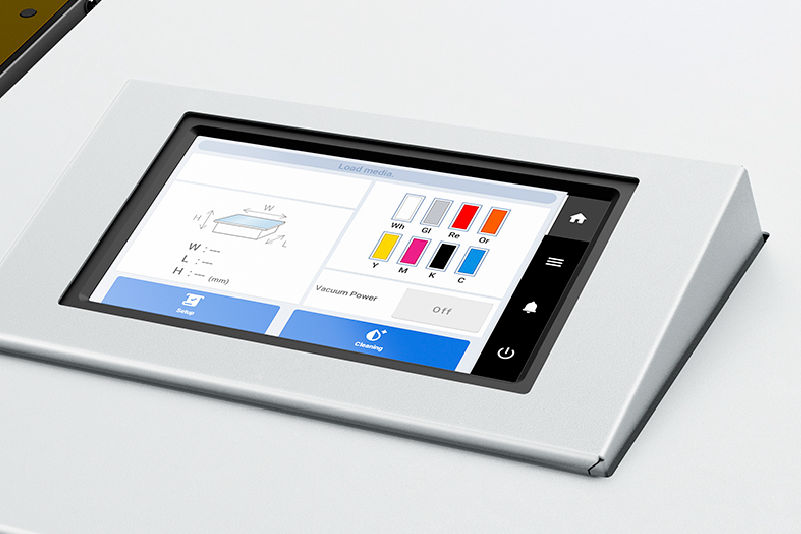

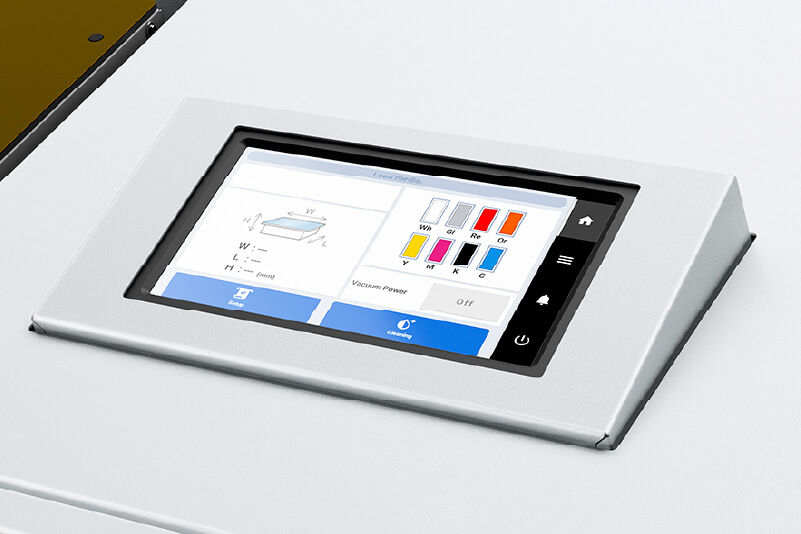

7" Touch Screen
Easily operate your MO Series printer and access all the features you need with a clear 7" touch screen and intuitive user interface.
Features Summary
|
Broad Substrate Compatibility Print onto a virtually limitless range of flexible and rigid substrates and objects. |
|
| Powerful Software Included VersaWorks 7 included, letting you print directly onto a variety of objects in a simple workflow. |
|
|
The Roland DG Legacy Make a safe investment with Roland DG’s world-renowned quality and reliability. |
|
|
Efficient and Fluid Workflows Produce your work, your way with flexible job-management features. |
|
|
Professional Colour Management Match your customers' colour with ease thanks to advanced RIP features. |
|
|
No Storage Costs Reduce your reliance on screen and pad storage and make your space work for you. |
|
|
Printing Distance Mode Print directly onto irregular or curved objects with a high degree of accuracy. |
|
|
Time Saving Turnaround Switch to digital direct-to-object printing and eliminate long set-up and finishing times. |
|
|
Low Running Cost Long-life print heads and UV lamps ensure long life and sustained quality. |
|
|
Texture Libraries Add extra expression to your prints easily with a library full of exciting printable textures. |
|
|
Mobile Cost Tracking Track ink usage and more in real time with the Roland DG Connect mobile app. |
|
|
Fast Set-up and Ease of Use Get started immediately after installation, with user-friendly operation and expert Roland DG training. |

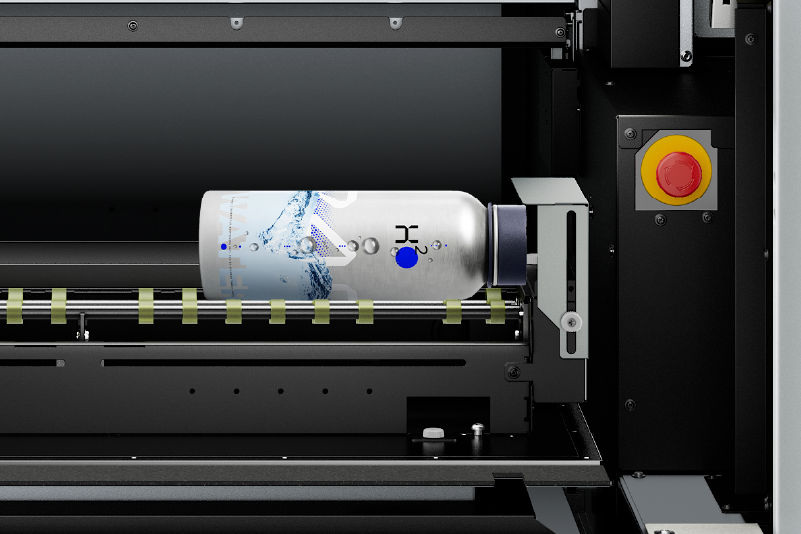

Optional Rotary Printing Unit
The new optional Rotary Axis is quick and simple to install and opens opportunities for printing onto bottles and other cylindrical items 10-121 mm in diameter and 30-540 mm in length.
Powerful Software Included
The VersaOBJECT MO Series is even more powerful when paired with VersaWorks 7 and Roland DG Connect. Developed specifically for Roland DG, our fast and flexible software gives you all you need to produce your work, your way.

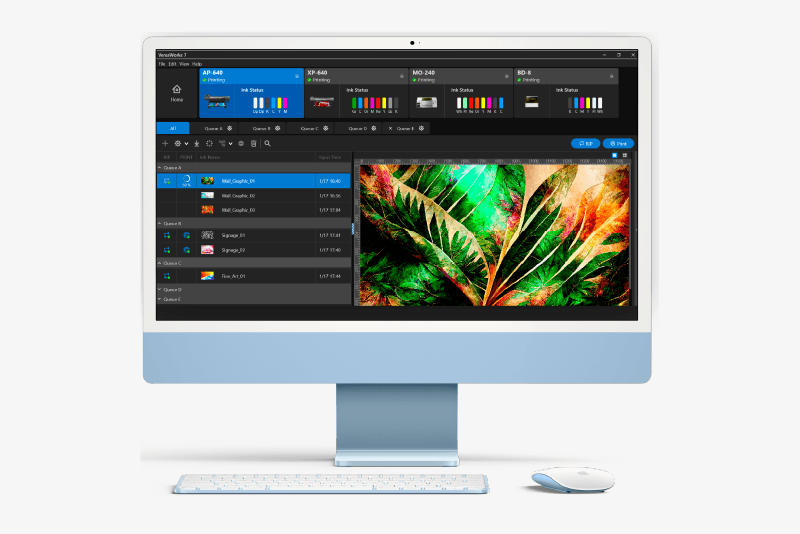

VersaWorks 7 RIP Software
Alongside high-speed RIP functionality, VersaWorks RIP includes a wide selection of productivity-boosting features for the MO Series, like automatic special colour generation and
LEARN MORE
*PrintAutoMate is an optional expansion to the Roland DG Connect app. Contact your Roland DG representative for more information.
EUV-A Ink: Flexibility Redefined
EUV-A ink offers outstanding flexibility, primer-less acrylic printing, and the ability to support thermoforming. It’s the perfect solution for custom leather and acrylic products, enhancing production efficiency and quality.

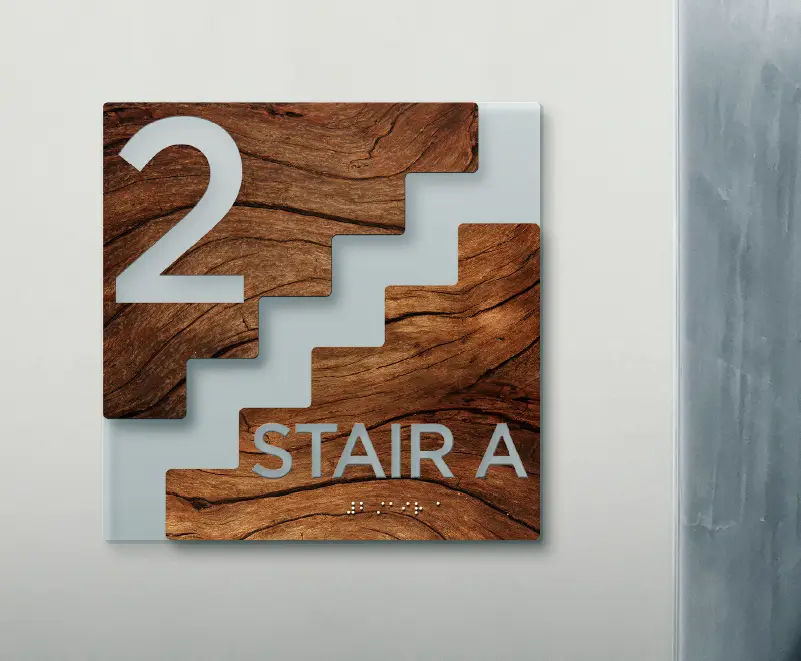

Primer-less Printing on Acrylic Substrates
Print directly on acrylic without primer, cutting production time by 50% compared to other branded models, and improving overall efficiency and output.
270% Elongation on Flexible Substrates
Achieve outstanding flexibility and durable prints when printing with CMYK or White on soft materials like leather, ensuring no cracks, even on items that bend or stretch.
Excellent Performance on Thermoformed Items
Supports thermoforming, enabling custom designs on curved surfaces for products like packaging, automotive interior parts, and electronic devices.
Certifications
GREENGUARD Gold
ECO-UV5 and EUV-A inks are GREENGUARD Gold certified, meaning they meet strict standards of low chemical emissions making them ideal for indoor applications.
Create Value with Direct Printing
Introducing VersaOBJECT from Roland DG - a comprehensive solution that enables anyone to easily print directly onto 3D objects made of a variety of materials.
Specifications
| Model | MO-240 | MO-180 | |||||||
| Printing Method | Piezo ink-jet method | ||||||||
| Attachable objects to be printed on |
Width | Max. 640 mm (25.1 in.) | Max. 488 mm (19.2 in.) | ||||||
| Length | Max. 488 mm (19.2 in.) | Max. 335 mm (13.1 in.) | |||||||
| Thickness | Max. 204 mm (8 in.) | Max. 204 mm (8 in.) | |||||||
| Weight | Max. 8 kg (17.6 lb.) (When using a vacuum table: max. 4 kg [8.8 lb.]) | ||||||||
| Printing width/printing length (width x length) | Max. 610 mm × 458 mm (24 in. × 18 in.) | Max. 458 mm × 305 mm (18 in. × 12 in.) | |||||||
| Ink |
Type | ECO-UV (EUV5P) 750 ml pouch; UV-Ink (EUV-A) 750 ml pouch | |||||||
Configurations |
ECO-UV (EUV5P) UV-Ink (EUV-A): |
||||||||
| Ink-curing unit | Built-in UV-LED lamp | ||||||||
| Printing resolution (dots per inch) | Max. 1,200 dpi | ||||||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||||||
| Power-saving function | Automatic sleep feature | ||||||||
| Power requirements | 100 - 240 Va.c. 50/60 Hz 3.5A | ||||||||
| Power consumption |
During operation | Approx. 290 W | |||||||
| Sleep mode | Approx. 70 W | ||||||||
| Acoustic noise level |
During operation | 60 dB (A) or less | |||||||
| During standby | 49 dB (A) or less | ||||||||
| Dimensions (width x depth x height) | 1,601 mm × 1,267 mm × 760 mm (63.1 in. × 49.9 in. × 30.0 in.) | 1,449 mm × 961 mm × 760 mm (57.1 in. × 37.9 in. × 30.0 in.) | |||||||
| Weight | 211 kg (465.18 lb.) | 174 kg (383.61 lb.) | |||||||
| Environment | During operation(*1) | Temperature: 20 to 32 °C (68 to 89.6 °F), Humidity: 35 to 80 %RH (no condensation) | |||||||
| Not operating | Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 %RH (no condensation) | ||||||||
| Included Items | Power cord, cleaning liquid, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect) etc. | ||||||||
