Brilliant Colour and Productivity
Powered by TH ink, delivering quality at a cost that protects your margins.

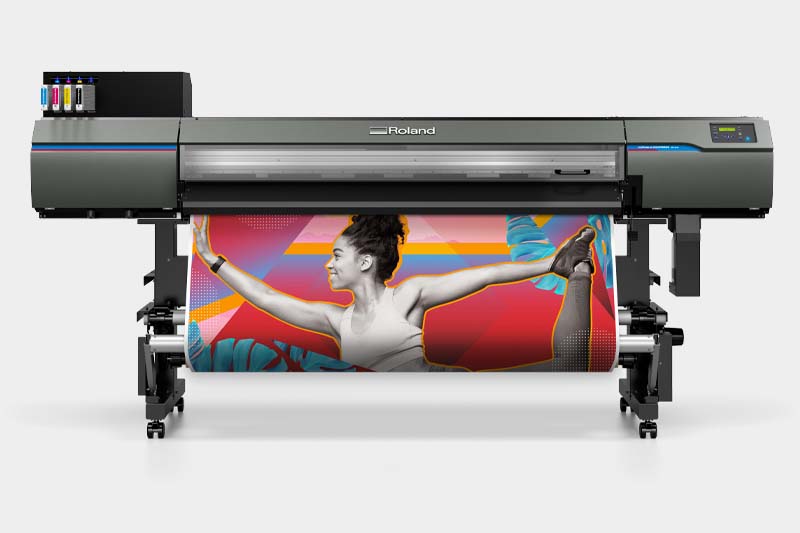

DGXPRESSNEW ER-641 Eco-solvent Printers
Outpace your competitors with the latest eco-solvent print solution. The DGXPRESS ER-641 roll-to-roll printer delivers the renowned quality and reliability of Roland DG, combined with exceptional productivity and competitive running costs.
- Excellent value with low running costs
- Vivid and accurate colours
- Broad media compatibility
High Speed Print Solutions
ER-641 Eco-Solvent Printer
Size: 64”
TH Ink
CMYK 500 ml cartridge
Professional Features Standard Production (Up to 28.6 m²/h) Low Investment Take-up Unit Included Dryer Unit* User-friendly Operation * Optional Extra FIND OUT MORE
Professional and Fast Digital Print
With enhanced speed and Roland DG quality, you can produce a huge range of print products in record times.
Everything You Need to Succeed
Produce work quickly and reliably with DGXPRESS print hardware.
Power your workflow with our most intelligent engine yet.
Get stunning results every time with economical eco-solvent ink.
Keep your business going with unparalleled support.
High Speed Printing
ER-641 is the ideal solution for those who need professional, reliable equipment which can exceed the demands of a thriving economy. Every element of the DGXPRESS eco-solvent printing solution is meticulously refined to deliver high-speed output with healthy margins.

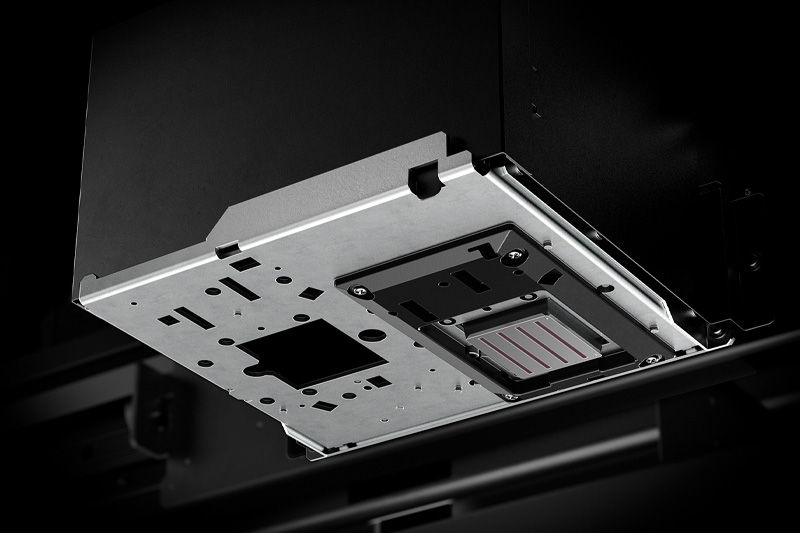

The newly developed high-speed data control technology maximises the performance of the print head achieving high-resolution output with fewer passes.
Exceptional Quality
ER-641 has been precision-engineered to produce prints at high speeds without compromising on print quality.
Features such as VersaWorks' True Rich Color ensure the reproduction of vivid and accurate colours, even with only CMYK inks.
Enhanced Roland Intelligent Pass Control
The newly developed head control technology has been engineered to deliver maximum performance on the ER-641. With Roland Intelligent Pass Control 2.0, prints benefit from smoother gradations and finer detail between passes, reducing banding even at high speeds. This marks a significant step forward in achieving exceptional print quality.
DGXPRESS ER-641 Special Features
Low Investment
Achieve a return on your investment even faster with the DGXPRESS ER-641. With precision-engineered efficiency and design know-how accumulated over many years, these devices are also cheap to run, lowering the cost of ownership.
Superior Output
Achieve excellent colour reproduction and high-resolution output with fewer passes thanks to a newly developed large print head capable of ejecting finer ink droplets at higher densities.
Print with Less Downtime
Replace caps, wipers, wiper cleaner, and flushing sponge around the print heads quickly and easily, without the need for a service engineer, resulting in significantly reduced downtime. The nozzle mask function allows you to keep printing even if a nozzle is missing from the head, so your work doesn't need to stop.

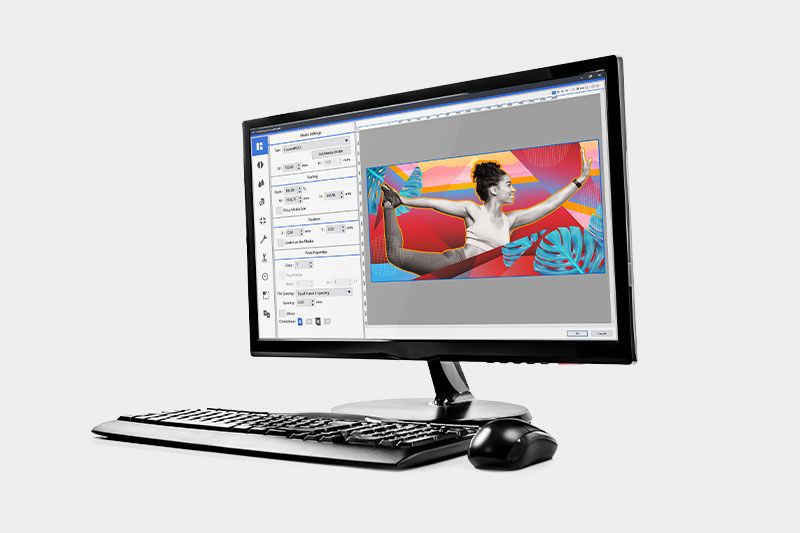

VersaWorks 7
Multifunctional RIP Suite
Besides its high-speed RIP functionality, VersaWorks 7 RIP includes a wide selection of productivity-boosting features:
- A range of built-in colour-matching functions including colour charts, finders and multi-device colour calibration.
- Printing modes contain a newly-developed dither pattern that enhances the power of the ER-641.
- The Job Variation setting quickly identifies the best print settings for your customers' needs.
Roland DG Connect App
For Everything Creative
Roland DG Connect now offers a more comprehensive suite of tools designed to maximise value and drive business growth. The enhanced platform provides services and resources that enable you to optimise output, connect with a community of professionals, access support, explore new opportunities and much more.
*Some functions are not available with TH ink.
Key Benefits
|
Great Return on Investment Affordable and powerful, these products can generate profits and pay for themselves quickly. |
|
Priced to Suit Your Business Roland DG digital print solutions are available to fit any budget. |
 |
Efficient and Fluid Workflows Produce your work, your way with flexible job-management features. |
 |
Professional Colour Management Match your customers' colour with ease thanks to advanced RIP features. |
 |
Fast Set-up and Ease of Use Plug in and start working immediately thanks to Roland DG’s user-friendly interface. |
 |
The Roland DG Legacy Make a safe investment with Roland DG’s world-renowned quality and reliability. |
|
Mobile Cost Tracking Track ink usage and more in real time with the Roland DG Connect mobile app. |
Specifications
| Printing method | Piezo ink-jet method | ||||||
| Media | Width | 259 to 1,625 mm |
|||||
| Thickness | Max. 1.0 mm (39.3 mil) with liner | ||||||
| Roll outer diameter | Max. 250 mm (9.8 in.) | ||||||
| Roll weight | Max. 45 kg (99 lb.) | ||||||
| Core diameter | 76.2 mm (3 in.) or 50.8 mm (2 in.) | ||||||
| Printing width1 | Max. 1,615 mm (63.5 in.) | ||||||
| Ink | Type | Eco-Solvent Ink (TH) 500 ml cartridge | |||||
| Colours | Four colours (Cyan, Magenta, Yellow, and Black) | ||||||
| Printing resolution (dots per inch) | Max. 1,200 dpi | ||||||
| Media heating system2 |
Print heater set temperature: 30 to 45 °C (86 to 113 °F) Dryer set temperature: 30 to 55 °C (86 to 131 °F) |
||||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||||
| Power-saving function | Automatic sleep feature | ||||||
| Power requirements | 100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A | ||||||
| Power consumption | During operation | Approx. 1,180 W | |||||
| Sleep mode | Approx. 50 W | ||||||
| Acoustic noise level | During operation | 66 dB (A) or less | |||||
| During standby | 53 dB (A) or less | ||||||
| Dimensions (width x depth x height) | 2,886 mm × 748 mm × 1415 mm (113.7 in. x 29.5 in. x 55.8 in.) | ||||||
| Weight | 185 kg (408 lb.) | ||||||

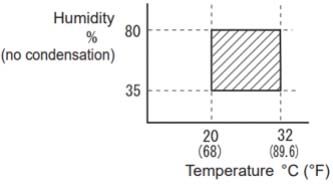

| Environment | During operation 3 | Temperature : 20 to 32 °C (68 to 89.6 °F), humidity: 35 to 80 % RH (no condensation) | |||||
| Not operating | Temperature : 5 to 40 °C (41 to 104 °F), humidity: 20 to 80 % RH (no condensation) | ||||||
| Included items | Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc. | ||||||
- Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
- Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
Why Choose Roland DG?
People buy Roland DG equipment because they know it will do what they need it to do - and more. Our mission is to bring new opportunities to society through digital technology, and we aim to develop the most reliable solutions in the industry.
- More than 40 years of trusted technical excellence.
- Robust, flexible technology and repeatable results.
- Unparalleled post-sales service and support.
Get in touch today and find out why Roland DG is the first choice for print businesses worldwide.
