High Productivity, Authentic Quality

VersaOBJECTNEW MO-240 Flatbed UV Printer

Expand your business with high-definition, high-speed digital printing thanks to the VersaOBJECT MO-240. Our advanced UV flatbed printer gives you the power to dominate a growing direct-print market through:

High-Definition Print: Reproduce small letters, fine textures, gradations, and colour-matched graphics with ease.
High Productivity: Do more with staggered printheads, powerful UV lamps, and an A2 print bed.
Greater Flexibility: Print up to 204 mm, as standard and unlock cylindrical items with an optional attachment.
Intuitive Interface: Now with touchscreen control and more powerful, easy-to-use VersaWorks software.

Download Brochure

Take Flatbed UV Printing to New Heights

Faster, More Beautiful, More Versatile

Deliver high-quality vibrant and impactful graphics onto a vast range of objects and substrates, including metal, plastic, glass, wood, canvas, vinyl, paper and much more besides, accommodating material up to 204 mm height.

For everything from custom electronics to industrial units, flatbed UV printing provides unprecedented options for customisation on a wide variety of substrates.

UV flatbed printing gives producers the option to individually customise plates and labels using a full digital printing process, or as part of a hybrid printing system.

Unlock a lucrative new line of unique products, individually customised according to customers' tastes, with the ability to print vibrant graphics and even 3D gloss details.

Flatbed UV printing is the perfect choice for customising phone cases of all kinds from rugged, shock-proof cases to folding leather cases.

With over 200 mm of clearance between the print head and the printing bed, you can print graphics and branding directly onto cases, boxes and containers.

UV printing is an excellent choice for producing a wide variety of keypads and membrane switches, offering much greater flexibility than analogue printing methods.

The VersaOBJECT MO-240 lets users print onto flat media up to A2 size made from glass, metal, plastic, wood and more, and also gives the ability to print Braille text directly to signage.

Thanks to Distance printing mode, bottles and flasks can easily be customised in large batches, or an optional rotary printing unit can be added, allowing users to print around the entire cylinder.

Distance printing mode lets users print directly onto spherical items like golf balls with ease and produces crisp and vibrant print results.

Thanks to its excellent substrate compatibility and ability to print text and fine details with remarkable accuracy, UV printing is a perfect solution for producing custom trophies, awards and medals.

Compared with more restrictive analogue processes like screen and pad printing, flatbed UV printing offers excellent flexibility when customising entire products or components.

Everything You Need to Succeed

MO Series Flatbed Printer

The latest and most advanced UV printer for your business

VersaWorks 6 RIP

VersaWorks 6 RIP

Power your workflow with our most intelligent engine yet

Premium EUV Ink

Premium EUV Ink

Get stunning results every time with economical Eco UV ink

Roland DG Care Warranty

Roland DG Care Warranty

Secure your investment with industry-leading support

See specifications for all included items

High-Definition Print

Newly developed print heads and LED lamp technology, coupled with advanced software and industry-leading inks give you the power to reproduce small letters, fine textures, gradations, and colour-matched graphics with ease. Furthermore, Orange and Red inks extend your achievable gamut letting you hit colours that previously could not be reproduced.

Whether you need vibrant image reproduction, high-opacity white ink, or the ability to print textures, the MO-240 UV printer is the answer.

High Productivity

The MO-240 is engineered to deliver high productivity with print speeds up to 1.2 times faster than comparable models from other brands. The staggered print head configuration, powerful lamps and increased bed-size deliver printing speeds of up to 2.07 m2/h in standard mode, letting you get more done. Denser white ink means you can print white twice as fast as previous models and Gloss ink can now be printed in thicker layers, doubling the speed.

Improvements to the setup process make it easier to switch between products and jigs of items with ease. The included software also lets you unlock unprecedented productivity with multi-layer printing, meaning that you can outperform your competition when printing on almost any substrate.

Greater Flexibility

Roland DG's EUV5 ink is renowned for its broad material compatibility and excellent adhesion. With just one ink formulation, you can print onto a variety of substrates, increasing your ability to adapt to changing market demands.

The MO-240 also allows you to beyond flat substrates thanks to built-in technologies including ‘distance mode’ printing and optional extras such as the rotary printing unit. With these features you can go even further with direct printing and move towards new opportunities.

Excellent Usability

Roland DG's solutions are designed for easy installation, set-up and operation. You can confidently operate these professional devices with a quick learning curve thanks to the user-friendly 7-inch touchscreen and intuitive VersaWorks 6 RIP software.

With the Roland DG Connect device monitoring app, you can also get real-time data about your print workflow, letting you schedule maintenance and improve profitability.

Highlighted Features

Staggered Print Heads

Achieve faster printing speeds than ever before with our new large print heads in a staggered array to accelerate CMYK, white and special effects printing.

UV Lamps

Our newly developed UV curing lamps, three times more powerful than conventional lamps, cure and fix the ink in a shorter period of time, enabling increased productivity, whilst maintaining high definition printing.

Vacuum Bed

The MO-240 comes with a vacuum bed as standard, which lets you print on a wider range of substrates including thinner, more flexible materials.

7" Touch Screen

Easily operate your MO-240 and access all the features you need with a clear 7" touch screen and intuitive user interface.

Features Summary

	Broad Substrate Compatibility Print onto a virtually limitless range of flexible and rigid substrates and objects.
	Powerful Software Included VersaWorks 6 included, letting you print directly onto a variety of objects in a simple workflow.
	The Roland DG Legacy Make a safe investment with Roland DG’s world-renowned quality and reliability.
	Efficient and Fluid Workflows Produce your work, your way with flexible job-management features.
	Professional Colour Management Match your customers' colour with ease thanks to advanced RIP features.
	No Storage Costs Reduce your reliance on screen and pad storage and make your space work for you.

	High Image Quality Reproduce premium-quality images and gain an edge against your competitors.
	Time Saving Turnaround Switch to digital direct-to-object printing and eliminate long set-up and finishing times.
	Texture Libraries Add extra expression to your prints easily with a library full of exciting printable textures.
	Mobile Cost Tracking Track ink usage and more in real time with the Roland DG Connect mobile app.
	Fast Set-up and Ease of Use Plug in and start working immediately thanks to Roland DG’s user-friendly interface.
	Printing Distance Mode Print directly onto irregular or curved objects with a high degree of accuracy.

▼ See all the benefits

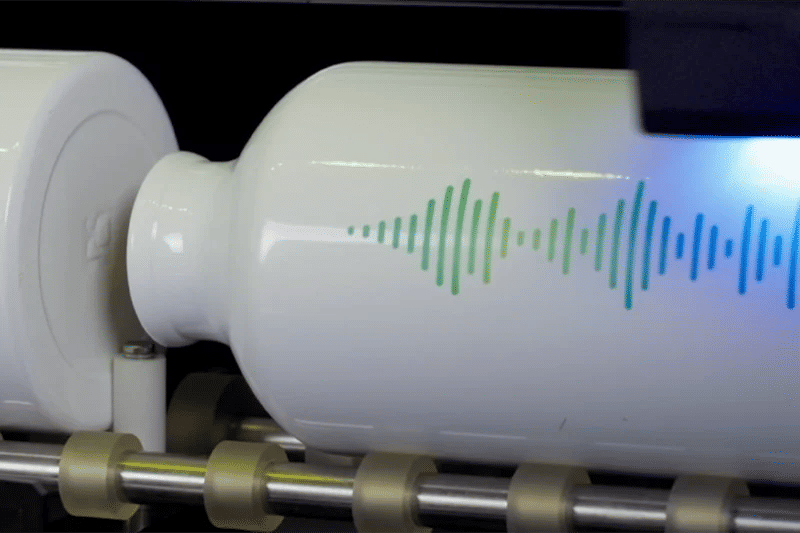

Optional Rotary Printing Unit

The new optional Rotary Axis is quick and simple to install and opens opportunities for printing onto bottles and other cylindrical items 10-121 mm in diameter and 30-540 mm in length.

Powerful Software Included

The VersaOBJECT MO-240 solution is even more powerful when paired with Roland DG's advanced software solutions. Developed specifically for Roland DG, our fast and flexible software gives you all you need to produce your work, your way.

LEARN MORE

*PrintAutoMate is an optional expansion to the Roland DG Connect app. Contact your Roland DG representative for more information.

High Quality and Versatile ink

Using the latest ECO-UV EUV5 inks for exceptional and premium-value printing, we go beyond CMYK to give you even more options and flexibility. Talk to a Roland DG expert about your print requirements to discover the ink configuration that’s right for you.

CMYK

Get premium results with high-quality CMYK EUV ink

Gloss

Generate a multitude of tangible effects, simulated embossing and gloss finishes

White

Print high-opacity white details or add sub-coats for dark or transparent materials

Red and Orange

With our True Rich Color preset, extend your available gamut and reproduce brand colours perfectly

Primer

Apply primer to the print area with precision for extensive media compatibility

See Specifications for Ink Configurations

Certifications

GREENGUARD Certified

GREENGUARD Gold

ECO-UV5 inks are GREENGUARD Gold certified, meaning they meet strict standards of low chemical emissions making them ideal for indoor applications.

Create Value with Direct Printing

Introducing VersaOBJECT from Roland DG - a comprehensive solution that enables anyone to easily print directly onto 3D objects made of a variety of materials.

FIND OUT MORE

Specifications

Model			MO-240
Printing Method			Piezo ink-jet method
Attachable objects to be printed on	Width		Max. 640 mm (25.1 in.)
	Length		Max. 488 mm (19.2 in.)
	Thickness		Max. 204 mm (8 in.)
	Weight		Max. 8 kg (17.6 lb.) (When using a vacuum table: max. 4 kg [8.8 lb.])
Printing width/printing length (width x length)			Max. 610 mm × 458 mm (24 in. × 18 in.)
Ink	Type		ECO-UV (EUV5P) 750 ml pouch
	Colours		Eight colours (cyan, magenta, yellow, black, gloss, white, orange, and red) Seven colours (cyan, magenta, yellow, black, white, orange, and red) and primer Seven colours (cyan, magenta, yellow, black, gloss, white, and red) and primer Seven colours (cyan, magenta, yellow, black, white x 2, orange, and red） Six colours (cyan, magenta, yellow, black, gloss, and white x 2) and primer Six colours (cyan, magenta, yellow, black, gloss x 2, and white x 2)
Ink-curing unit			Built-in UV-LED lamp
Printing resolution (dots per inch)			Max. 1,200 dpi
Connectivity			Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function			Automatic sleep feature
Power requirements			100 - 240 Va.c. 50/60 Hz 3.5A
Power consumption		During operation	Approx. 290 W
		Sleep mode	Approx. 70 W
Acoustic noise level		During operation	60 dB (A) or less
		During standby	49 dB (A) or less
Dimensions (width x depth x height)			1,601 mm × 1,267 mm × 760 mm (63.1 in. × 49.9 in. × 30.0 in.)
Weight			211 kg (466 lb.)
Environment		*During operation(1)**	Temperature: 20 to 32 °C (68 to 89.6 °F), Humidity: 35 to 80 %RH (no condensation)
		Not operating	Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 %RH (no condensation)
Included Items			Power cord, cleaning liquid, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect) etc.

¹ Operating environment (Use the machine in an operating environment within these ranges.)

Protect Your Investment

Take your business forward with complete peace of mind thanks to Roland DG’s renowned post-sale service. Roland DG Care warranties cover you for much more than device maintenance.

Factory-trained service engineers
Quick installation and first-time set-up
Expert advice and training

Why Choose Roland DG?

People buy Roland DG equipment because they know it will do what they need it to do - and more. Our mission is to bring new opportunities to society through digital technology, and we aim to develop the most reliable solutions in the industry.

More than 40 years of trusted technical excellence.
Robust, flexible technology and repeatable results.
Unparalleled post-sales service and support.

Get in touch today and find out why Roland DG is the first choice for print businesses worldwide.
