DISCOVER NEW POSSIBILITIES
VersaOBJECT LEF2-300D, LEF2-300, LEF2-200 Benchtop UV Flatbed Printer
-
LIST PRICE
Starting from £ 21,699
LEF2-200 £ 21,699
LEF2-300 £ 30,999
LEF2-300D £ 32,999
▼ See all models and prices
Your customers want something unique. Give them something extraordinary with the VersaOBJECT LEF2 series: the latest generation of Roland’s award-winning benchtop UV printers available in three different models. Simple to operate and packed with potential, the LEF2 series enables direct printing onto a huge range of materials and objects up to 200mm thick – producing stunning colour, realistic textures and stylish embossed effects.
Choose the VersaOBJECT LEF2 printer that suits your business
Choose LEF2-200
for versatile product personalisation.
(508mm w x 330mm l x 100mm t)

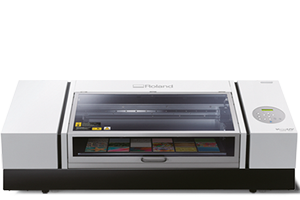

Choose LEF2-300
for higher-volume customisation.
(770mm w x 330mm l x 100mm t)

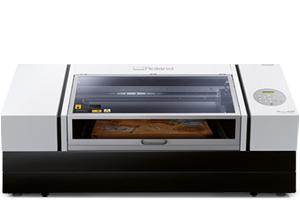

Choose LEF2-300D
for printing on taller objects.
(770mm w x 330mm l x 200mm t)
Fast, on-demand printing on one or many items
The Roland VersaOBJECT LEF2 series really pushes the boundaries of what’s possible with print, adding value to off-the-shelf items by transforming them into unique, personalised pieces. Customise small and medium-sized items on demand by adding corporate branding and cool graphics - from a single object to longer production runs.
Personalise a huge range of profitable items such power banks, smartphone cases, laptop covers, promotional items, prototypes, souvenirs, pens, signs, personalised awards, giftware, cases, boxes, shoes, sneakers and so much more.
Promotional products and gifts
Canvases
Customised stationery
Print onto curved objects
Trophies and Awards
Sports, games and music
Customised electronics
Signage and display
Phone cases
Cosmetics and perfume packaging
Braille and tactile signage
Product parts and prototypes

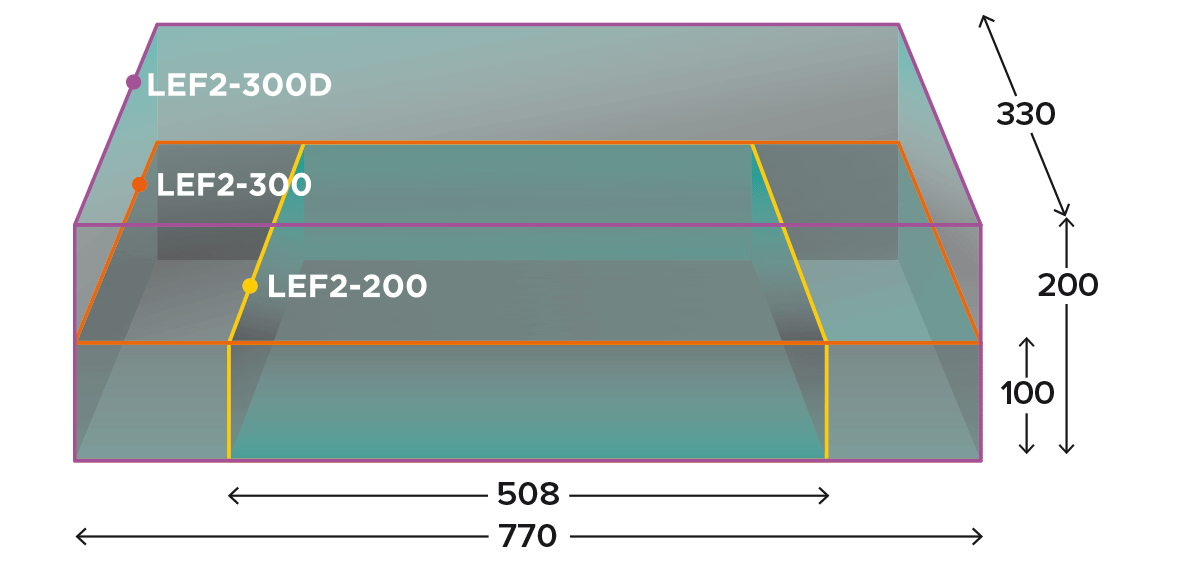

Print objects up to 200 mm
With the LEF2-300/200, materials up to 100 mm (3.94 in.) thick can be loaded, and a height tolerance of 2 mm facilitates printing on irregular and curved objects. Furthermore, the LEF2-300D supports a maximum thickness of 200 mm (7.87 in.) in the height direction, allowing you to print not only on thicker materials, but also on a wider variety of shapes by incorporating a more diverse assortment of jigs.
The VersaOBJECT series also supports an optional rotary axis jig for printing onto bottles and other cylindrical objects.
Print directly onto a wide range of media
VersaOBJECT LEF2 series technology makes it easy and efficient to print stunning, premium-quality photographs, graphics and finely-detailed text onto almost anything. Instantly curable Roland ECO-UV inks – including white and gloss options- are compatible with a jaw-dropping range of hard and soft materials, such as PVC and plastics, acrylic, canvas, wood, leather, aluminium, metals, glass and fabric1. Media up to 100 mm (LEF2-200 and LEF2-300) and up to 200 mm (LEF2-300D) thick can be loaded, and a vacuum table holds thin and tricky-to-handle media firmly in place2.
Feel the Colour with Gloss ECO-UV Ink
Print gloss or matt finishes, realistic textures, or 3D embossed effects to add an irresistible new dimension of “touch and colour”. Create your own special finishes or choose from 72 ready-to-use texture patterns in our Roland Texture System Library.
Click on the swatch below.
Offer Unique Custom Items with ECO-UV ink
Roland ECO-UV ink in CMYK, white and gloss dries instantly for a wide colour gamut with sharp details and vibrant colour density. ECO-UV requires no degassing and stretches around curves and irregular surfaces without cracking.
- Create colours that pop on dark, coloured or clear substrates by printing a base layer of Roland’s UV white ink.
- Optional on-board primer3 preps objects quickly and conveniently.
- Automated Ink Circulation System lowers running costs and prevents ink pigments from settling in the ink lines for even consistency.
- Mist filters catch surplus ink that mists off the edges of media to avoid overspray and stop ink from falling on internal components.

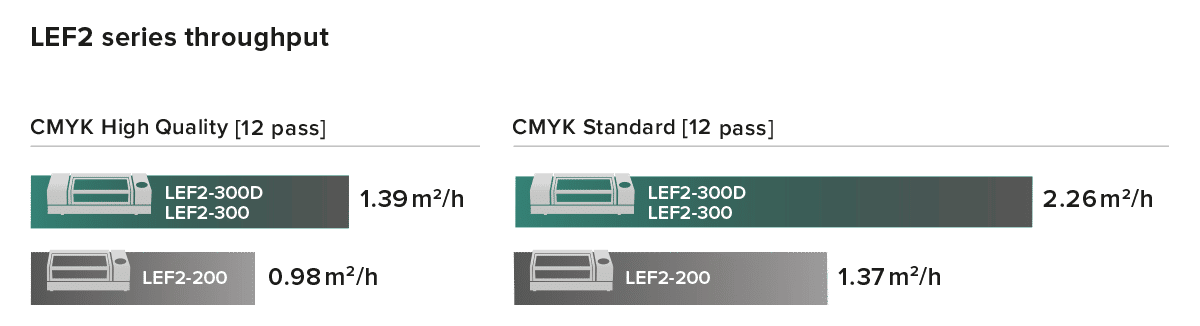

A Choice of Productivity and Printing Areas
The LEF2 lineup offers you a choice of three models with different print areas and printing speeds so you can match your work volume and the size of the material and objects you want to print.
Powerful VersaWorks 6 RIP Software Included
With powerful new 64-bit processing and RIP capabilities, plus cropping, tiling, nesting and other tools, the world’s most powerful RIP software, VersaWorks 6, makes production even simpler and maximises the capabilities of your print device.
Icon-based interface with drag-and-drop functionality facilitates ease of use.
Supports data rotation and a partial print function that maintains position information.
Special Color Plate Generation allows you to auto-generate White, Gloss and Primer layers, directly in the RIP.
Spot embossing function speeds up printing of 3D embossed effects (supported only for the CMYKGlGlWh ink configuration on the LEF2-300).
Color-Matching Function allows easy colour matching for same printer models and ink types. Consistent colour matching is possible even when sharing print jobs with multiple printer units4.
Advanced RIP features include new print queue options, up to 40 job presets, UV post cure within the RIP and new 16-pass print mode (standard 720x720 dpi).
Compatible with Other RIP Providers
Are you already using another RIP solution?
Many RIP software providers support Roland DG printers. Check this compatibility RIP list to see if you can install this Roland DG device into your existing workflow.
UV customisation with more ease and efficiency
The VersaOBJECT LEF2 series is fully loaded with advanced features to simplify operation and make printing even faster. Completely enclosed when printing, it runs clean, cool with energy-efficient UV-LED lamps and low maintenance head technology. The LEF2 offers many new functions to streamline your print process.
Multiple Print function
Perform continuous printing efficiently. With the Multiple Print function, you can perform the next print just by pressing the start button on the machine, without returning to the software.
Long Lasting
UV Lamps
The LEF2 series uses LED lamps for UV curing that last up to ten times longer than conventional UV lamps and can be instantly switched on or off, for true on-demand production without the typical warm-up time.
In addition, the LEF2 automatically enters a low-power mode when not in use for an extended period.
High Reliability and Safety
Remove any ink remaining on your printheads with the Head Refresher feature which cleans the printhead surface to maintain machine health and ink cost-efficiency.
Minimise downtime in the unlikely event of a printhead clogging - the new Nozzle Mask function allows you to continue printing while using half of the printhead.
The airtight cover protects operators from UV light and prevents dust from settling onto the surface of materials while printing.
ECO-UV ink is certified GREENGUARD Gold for safe indoor graphic applications in even the most sensitive locations such as schools and hospitals, due to its low chemical emissions.
Roland DG Connect App
For Everything Creative
Reduce downtime and improve work efficiency with a machine monitoring assistant that helps you gain a detailed understanding of your entire print operation while keeping your device running at optimum performance.
Productivity features
|
Automatic Media Height system The Automatic Media Height setting detects the height of the material quickly, while optimised printing table movements eliminate the move-down operation of the table when opening the cover and allow continuous operation when printing multiple items consecutively. |
|
Positioning jig The LEF2 is great for printing directly onto unusually shaped items and the special positioning jig helps you align them easily on the print table. |
|
Intelligent test printing Save time and materials by altering the test print position – test print on the same material multiple times. |
|
Plug and Print LEF2 series UV printers simply plug in to a standard electrical outlet. Using a fraction of the power that other flatbed printers demand, an LEF2 offers significant savings on electrical costs per year. |
|
LED Alignment system The built-in LED alignment system sets the origin point when printing on different media – use it as a two-point reference to detect flat substrates or as a centre origin point of reference on curved or odd-shaped items. It’s a handy feature to speed up your print job. |
|
Roland Intelligent Pass Control Controls dot placement between each pass for faster throughput and excellent image quality in all print modes. |
|
Ethernet connection Print from anywhere – the built-in Ethernet connection allows you to connect your LEF2 to your existing network. |
|
Vacuum table Ideal for efficiently and accurately securing thin materials and delicate media, the LEF2-300 and LEF2-300D2 features a built-in vacuum table for stable printing and high-quality results. An optional vacuum table is also available for the LEF2-200. |
Request a free sample, bespoke demonstration
or more information
We know it's important to have all the information at your fingertips when investing in new equipment, so whether you want to speak to a Roland expert, see and feel real printed samples, or get hands-on with any of the Roland product range, get in touch today.
Create Value with Direct Printing
Introducing VersaOBJECT from Roland DG - a comprehensive solution that enable anyone to easily print directly onto 3D objects made of a variety of materials.
Download Our
UV Printing Guide
• Common routes into UV printing
• What you need to get started
• Getting your products to market
• Getting a return on investment
• Products you can make and sell
Free Download
Protect Your Investment
- Factory-trained service engineers
- Quick installation and first-time set-up
- Expert advice and training
Why Choose Roland DG?
People buy Roland DG equipment because they know it will do what they need it to do - and more. Our mission is to bring new opportunities to society through digital technology, and we aim to develop the most reliable solutions in the industry.
- More than 40 years of trusted technical excellence.
- Robust, flexible technology and repeatable results.
- Unparalleled post-sales service and support.
Get in touch today and find out why Roland DG is the first choice for print businesses worldwide.
2 Built-in vacuum table with the LEF2-300. Optional vacuum table available for the LEF2-200.
3 For best primer results, it is strongly recommended that users test for adhesion on specific substrates before final production.
4 Valid only when using the same model printers with the same ink type and configuration. Files must be printed with the same print settings including “Media Type” and “Print Quality.”
