Start Stronger.

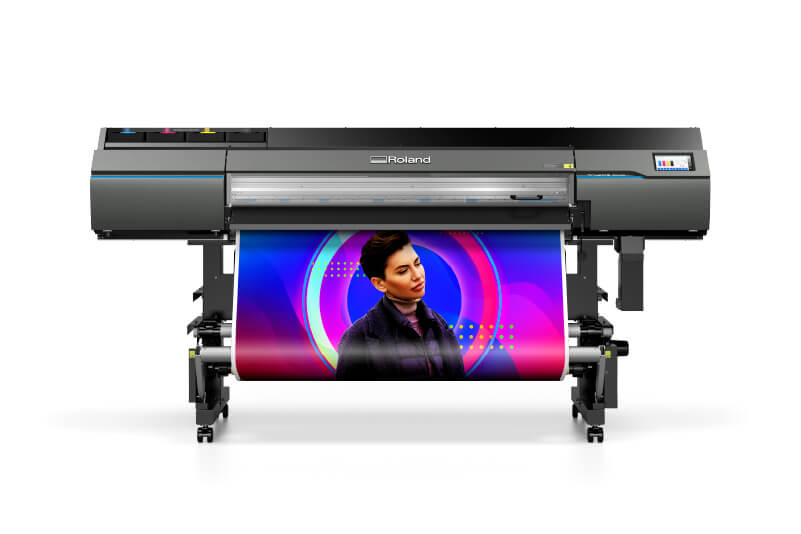

TrueVIS SG3 Series Large-Format Inkjet Printer/Cutters
-
LIST PRICE
Starting from £ 8,999
SG3-300 £ 8,999
SG3-540 £ 11,699
▼ See all models and prices
TrueVIS, the device that launched countless businesses, is now entering a new stage of evolution for the digital age. Start your business with a winning partnership and get the best chance for success.
- Intuitive and user-friendly operation
- Premium print and excellent colour
- Flexible and customisable workflows
- Future-proof and reliable support
Everything You Need to Succeed
Choose a size to suit your business
Get stunning results every time with our economical TR2 ink

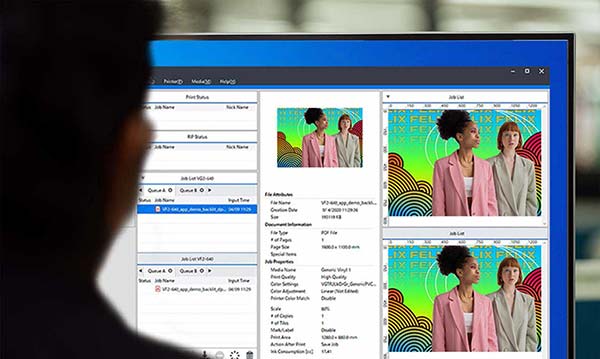

Power your workflow with our most intelligent RIP software to date
Secure your investment with industry-leading support
SG3-300
|
SG3-540
|
|---|---|
|
PRICE INCLUDING TAKE-UP UNIT
£ 8,999
|
PRICE INCLUDING TAKE-UP UNIT
£ 11,699
|
|
SIZE
30"
|
SIZE
54"
|
|
CONTROL PANEL
7" LCD Touch
|
|
Build a Business That Can Do It All
You know where you want to go - but where you start can really make a difference. With the TrueVIS SG3 solution, you are prepared from day-one to produce a variety of products from large wall graphics to small stickers, all on the same device, using the same software and supported by the same great partnership.
Visit our Virtual Showroom
Find out how Roland DG equipment can support your business by taking a virtual demo from the comfort of your own device.
Scan the QR code using your mobile device.
Roland DG Connect App
For Everything Creative
Reduce downtime and improve work efficiency with a machine monitoring assistant that helps you gain a detailed understanding of your entire print operation while keeping your device running at optimum performance.
Compatible with Other RIP Providers
Are you already using another RIP solution?
Many RIP software providers support Roland DG printers. Check this compatibility RIP list to see if you can install this Roland DG device into your existing workflow.
Four Colours - Multiple Possibilities
Roland DG's advanced TR2 ink, exclusive to the TrueVIS range, has all you need to create a strong foundation for your print business. Whether just getting started or taking your next steps, you will always get a professional result with TR2 inks.
- GREENGUARD Gold certified
- Avery ICS certified
- Fast outgassing times
- Excellent durability
Looking for More?
The TrueVIS VG3 solution features pro-level devices with faster speeds and more ink configurations. Extend your gamut with orange and green inks, enable more functionality with white ink or achieve smoother gradients with light coloured inks.
User-friendly Features
Enhance your workflow and build a stronger, more productive business with the TrueVIS SG3 solution - our most intuitive and user-focused system yet.
Control your device with the greatest of ease thanks to the 7" touch screen, complete with clear and simple menus to give you the information and functionality you need, when you need it.
- View settings and notifications
- See ink status, remaining print time and print thumbnail
- Operate take-up unit and perform sheet cuts
Robust, accurate and easy to use, the SG3 solution includes a built-in take-up unit to enable long unsupervised print runs.
- Adjustable end-cap compatible with a range of media tube lengths
- Quick loading with one-touch media holder
- Handle various media types from thin films to heavy canvas material.
Save even more time with fast and easy media gap and feed compensation. Optical registration technology ensures precise print accuracy and consistent, repeatable results without fuss.
Key benefits
|
Great Return on Investment Affordable and powerful, the SG3 Series can quickly generate profits and pay for itself. |
|
Efficient Cutter Integration Seamlessly pair with a Roland DG cutter for high-intensity production. |
|
Powerful Software Included VersaWorks 6 included, letting you produce print and cut output in a simple workflow. |
|
The Roland DG Legacy Make a safe investment with Roland DG’s world-renowned quality and reliability. |
|
Rapid Media Adjustment Ensure perfect output and optimum settings for each media with automated adjustment. |
|
ICC Profiles Access Roland DG's library of ICC profiles and find hundreds of profiles to match your needs. |
|
Fast Set-up and Ease of Use Plug in and start working immediately thanks to Roland DG’s user-friendly interface. |
|
Efficient and Fluid Workflows Produce your work, your way with flexible job-management features. |
|
Integrated Take-up Unit Easily produce unattended long print runs with full confidence. |
|
Low Running Cost Long-life print heads and intelligent management software ensures long life and sustained quality. |
|
Mobile Cost Tracking Track ink usage and more in real time with the Roland DG Connect mobile app. |
|
Sheet Perforated Cut Separate individual jobs without cutting the backing sheet enabling unattended long runs and fast finishing. |
Create Your Perfect Workflow
|
Flexible Queue Settings Multiple queues, hot folders and unlimited pre-sets. |
|
Intuitive Interface Simple, user-friendly drag-and-drop operation. |
|
Rapid Native PDF File Processing Easy handling and accurate reproduction of transparencies and shadows. |
|
Onboard Cut Line Editing Add contour cut and perforated cut lines directly within the RIP. |
Seamless Productivity

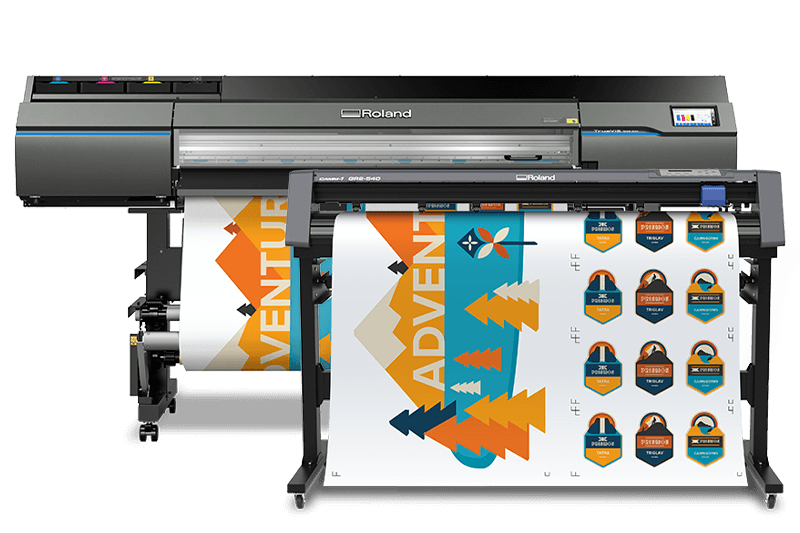

Enhance your capabilities and boost your productivity even further by adding our latest GR2 cutter to your workflow. Besides producing long runs of print and cut jobs, you can also simultaneously print on one device whilst cutting on another for intensive production.
Ask your dealer or contact Roland DG for more information.
For the Future
With over 28.000 users worldwide, TrueVIS perfectly embodies
Additional Information
Specifications
| SG3-540 | SG3-300 | ||
|---|---|---|---|
| Printing Method | Piezo ink-jet method | ||
| Media | Width | 295 to 1,371 mm (11.7 to 54 in.) | 182 to 762 mm (7.2 to 30 in.) |
| Thickness | Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting |
||
| Roll outer diameter | Max. 250 mm (9.8 in.) | ||
| Roll weight | Max. 35 kg (77 lb.) | Max. 30 kg (66 lb.) | |
| Core diameter | 76.2 mm (3 in.) or 50.8 mm (2 in.) | ||
| Printing/cuttin width (*1) | Max. 1,346 mm (52.9 in.) | Max. 736 mm (28.9 in.) | |
| Ink | Type | TrueVIS INK 500 ml pouch | |
| Colors | Four colors (cyan, magenta, yellow, and black) | ||
| Printing resolution (dots per inch) | Max. 1,200 dpi | ||
| Cutting speed | 10 to 300 mm/s (0.39 to 11.8 in/s) | ||
| Blade force (*2) | 30 to 500 gf | ||
| Blade | Type | Roland CAMM-1 series blade | |
| Offset | 0.000 to 1.500 mm (0.0 to 59 mil) | ||
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) | ||
| Media heating system (*3) | Print heater set temperature: 30 to 45 °C (86 to 113 °F) Dryer set temperature: 30 to 55 °C (86 to 131 °F) |
||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||
| Power-saving function | Automatic sleep feature | ||
| Power requirement |
100-120/220-240 Va.c. |
100-120/220-240 Va.c. 50/60 Hz 5.4/2.7 A |
|
| Power consumption | During operation | Approx. 1,090 W | Approx. 710W |
| Sleep mode | Approx. 50 W | ||
| Acoustic noise level | During operation | 63 dB (A) or less | |
| During standby | 53 dB (A) or less | ||
| Dimensions (Width x Depth x Height) |
2,632 mm × 748 mm × 1,320 mm (103.7 in. x 29.5 in. x 52.0 in.) | 2,022 mm × 748 mm × 1,320 mm (79.7 in. x 29.5 in. x 52.0 in.) | |
| Weight | 183 kg (404 lb.) | 150 kg (331 lb.) | |
| Environment | During operation | Temperature: 20 to 32 °C (68 to 89.6 °F), humidity: 35 to 80 % RH (no condensation) | |
| Not operating | Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation) | ||
| Included items | Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User's Manual, Software(VersaWorks, Roland DG Connect), etc. | ||
- *1 - The length of printing or cutting is subject to the limitations of the program.
- *2 - 500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
- *3 - Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
Accessories
| Model | Description |
|---|---|
| TR2-CY | TrueVIS INK Cyan, 500 cc |
| TR2-MG | TrueVIS INK Magenta, 500 cc |
| TR2-YE | TrueVIS INK Yellow, 500 cc |
| TR2-BK | TrueVIS INK Black, 500 cc |
| TR2-CL2 | TrueVIS Cleaning Liquid, 500 cc |
| VW-S1 | Densitometer tool |
| ZEC-U5032 | Cutting blade for standard sign vinyl, 2pcs. |
| ZEC-U5025 | Cutting blade for standard sign vinyl, reflective and fluorescent / thick media, 5pcs. |
| XD-CH3 | Adjustable blade holder - resin |
| XD-CH4-BL | Adjustable blade holder - black |
| XD-CH4-OR | Adjustable blade holder - orange |
| XD-CH4-RD | Adjustable blade holder – red |
Protect Your Investment
- Factory-trained service engineers
- Quick installation and first-time set-up
- Expert advice and training
Why Choose Roland DG?
People buy Roland DG equipment because they know it will do what they need it to do - and more. Our mission is to bring new opportunities to society through digital technology, and we aim to develop the most reliable solutions in the industry.
- More than 40 years of trusted technical excellence.
- Robust, flexible technology and repeatable results.
- Unparalleled post-sales service and support.
Get in touch today and find out why Roland DG is the first choice for print businesses worldwide.
