TrueVIS SG3 Series Large-Format Inkjet Printer/Cutters

TrueVIS, the device that launched countless businesses, is now entering a new stage of evolution for the digital age. Start your business with a winning partnership and get the best chance for success.

  • Intuitive and user-friendly operation
  • Premium print and excellent colour
  • Flexible and customisable workflows
  • Future-proof and reliable support

Everything You Need to Succeed

TrueVIS SG3 Printer/Cutter

Choose a size to suit your business

TrueVIS TR2 Ink

Get stunning results every time with our economical TR2 ink

VersaWorks 6 RIP

Power your workflow with our most intelligent RIP software to date

Roland DG Care Warranty

Secure your investment with industry-leading support

$name

Build a Business That Can Do It All

You know where you want to go - but where you start can really make a difference. With the TrueVIS SG3 solution, you are prepared from day-one to produce a variety of products from large wall graphics to small stickers, all on the same device, using the same software and supported by the same great partnership.

Printed sign in clothes shop
Printed label on bottle
Printed window graphic
Selection of printed and cut stickers
Large printed wall graphic
Van with printed wrap
Selection of custom T-shirts

Visit our Virtual Showroom

Find out how Roland DG equipment can support your business by taking a virtual demo from the comfort of your own device.

See the TrueVIS SG3 in your space

Scan the QR code using your mobile device.

The Roland DG Connect app showing on a notebook and a mobile device

Roland DG Connect App
For Everything Creative

Reduce downtime and improve work efficiency with a machine monitoring assistant that helps you gain a detailed understanding of your entire print operation while keeping your device running at optimum performance.

The Roland DG Connect app showing on a notebook and a mobile device

Compatible with Other RIP Providers

Are you already using another RIP solution?

Many RIP software providers support Roland DG printers. Check this compatibility RIP list to see if you can install this Roland DG device into your existing workflow.

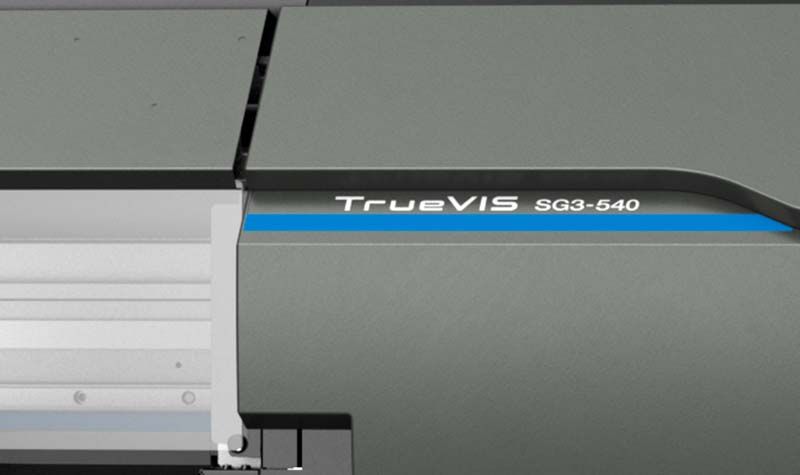

TrueVIS SG3-540 Close up

GREENGUARD Certified

Four Colours - Multiple Possibilities

Roland DG's advanced TR2 ink, exclusive to the TrueVIS range, has all you need to create a strong foundation for your print business. Whether just getting started or taking your next steps, you will always get a professional result with TR2 inks.


  • GREENGUARD Gold certified
  • Avery ICS certified
  • Fast outgassing times
  • Excellent durability
GREENGUARD Certified
Additional colours

Looking for More?

The TrueVIS VG3 solution features pro-level devices with faster speeds and more ink configurations. Extend your gamut with orange and green inks, enable more functionality with white ink or achieve smoother gradients with light coloured inks.

See the VG3 Range

Additional colours

User-friendly Features

Key benefits


Great Return on Investment
Affordable and powerful, the SG3 Series can quickly generate profits and pay for itself.
Efficient Cutter Integration
Seamlessly pair with a Roland DG cutter for high-intensity production.
Powerful Software Included
VersaWorks 6 included, letting you produce print and cut output in a simple workflow.
The Roland DG Legacy
Make a safe investment with Roland DG’s world-renowned quality and reliability.
Rapid Media Adjustment
Ensure perfect output and optimum settings for each media with automated adjustment.
ICC Profiles
Access Roland DG's library of ICC profiles and find hundreds of profiles to match your needs.


Fast Set-up and Ease of Use
Plug in and start working immediately thanks to Roland DG’s user-friendly interface.
Efficient and Fluid Workflows
Produce your work, your way with flexible job-management features.
Integrated Take-up Unit
Easily produce unattended long print runs with full confidence.
Low Running Cost
Long-life print heads and intelligent management software ensures long life and sustained quality.
Mobile Cost Tracking
Track ink usage and more in real time with the Roland DG Connect mobile app.
Sheet Perforated Cut
Separate individual jobs without cutting the backing sheet enabling unattended long runs and fast finishing.

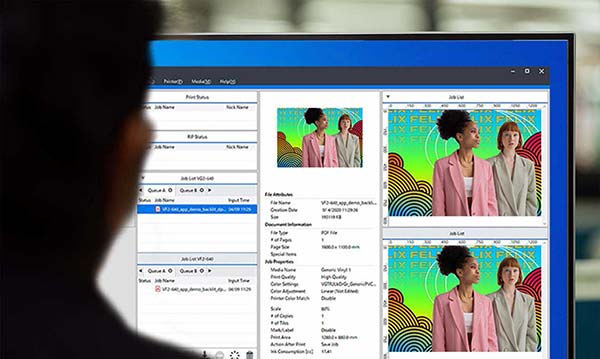

VersaWorks RIP on computer monitor
VersaWorks RIP on computer monitor

Create Your Perfect Workflow

The TrueVIS SG3 solution comes with our most advanced release of VersaWorks 6 RIP software to date. This fast, flexible and feature-rich system gives you all you need to produce your work, your way.
Flexible Queue Settings
Multiple queues, hot folders and unlimited pre-sets.
Intuitive Interface
Simple, user-friendly drag-and-drop operation.
Rapid Native PDF File Processing
Easy handling and accurate reproduction of transparencies and shadows.
Onboard Cut Line Editing
Add contour cut and perforated cut lines directly within the RIP.

FIND OUT MORE

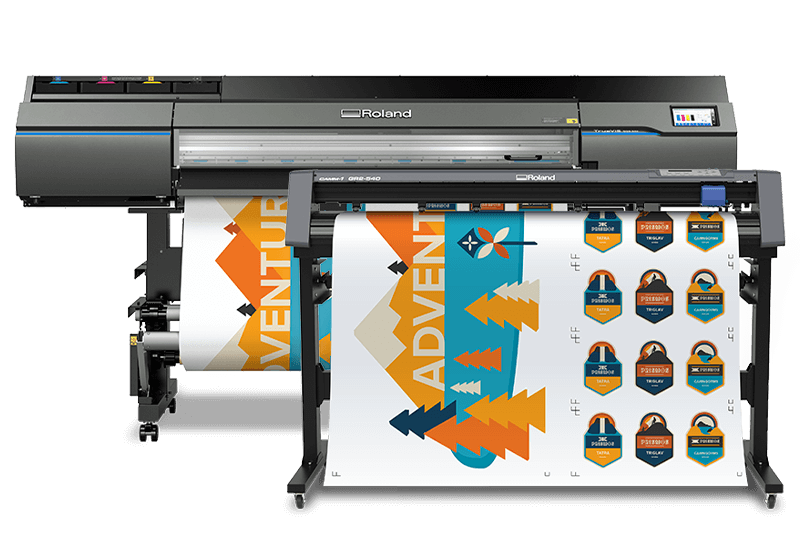

Separate printer and cutter
Separate printer and cutter

Seamless Productivity

Enhance your capabilities and boost your productivity even further by adding our latest GR2 cutter to your workflow. Besides producing long runs of print and cut jobs, you can also simultaneously print on one device whilst cutting on another for intensive production.

Ask your dealer or contact Roland DG for more information.

For the Future

With over 28.000 users worldwide, TrueVIS perfectly embodies Roland DG's long legacy of premium, high-quality print and cut.

FIND OUT MORE

Additional Information

Expand All | Collapse All
TrueVIS SG3 Series
SG3-540 SG3-300
Printing Method Piezo ink-jet method
Media Width 295 to 1,371 mm (11.7 to 54 in.) 182 to 762 mm (7.2 to 30 in.)
Thickness Max. 1.0 mm (39.3 mil) with liner, for printing
Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
Roll outer diameter Max. 250 mm (9.8 in.)
Roll weight Max. 35 kg (77 lb.) Max. 30 kg (66 lb.)
Core diameter 76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing/cuttin width (*1) Max. 1,346 mm (52.9 in.) Max. 736 mm (28.9 in.)
Ink Type TrueVIS INK 500 ml pouch
Colors Four colors (cyan, magenta, yellow, and black)
Printing resolution (dots per inch) Max. 1,200 dpi
Cutting speed 10 to 300 mm/s (0.39 to 11.8 in/s)
Blade force (*2) 30 to 500 gf
Blade Type Roland CAMM-1 series blade
Offset 0.000 to 1.500 mm (0.0 to 59 mil)
Software resolution (when cutting) 0.025 mm/step (0.98 mil/step)
Media heating system (*3) Print heater set temperature: 30 to 45 °C (86 to 113 °F)
Dryer set temperature: 30 to 55 °C (86 to 131 °F)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Power requirement

100-120/220-240 Va.c.
50/60 Hz 8.0/4.1 A

100-120/220-240 Va.c.
50/60 Hz 5.4/2.7 A
Power consumption During operation Approx. 1,090 W Approx. 710W
Sleep mode Approx. 50 W
Acoustic noise level During operation 63 dB (A) or less
During standby 53 dB (A) or less
Dimensions
(Width x Depth x Height)
2,632 mm × 748 mm × 1,320 mm (103.7 in. x 29.5 in. x 52.0 in.) 2,022 mm × 748 mm × 1,320 mm (79.7 in. x 29.5 in. x 52.0 in.)
Weight 183 kg (404 lb.) 150 kg (331 lb.)
Environment During operation Temperature: 20 to 32 °C (68 to 89.6 °F), humidity: 35 to 80 % RH (no condensation)
Not operating Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation)
Included items Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User's Manual, Software(VersaWorks, Roland DG Connect), etc.
  • *1 - The length of printing or cutting is subject to the limitations of the program.
  • *2 - 500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
  • *3 - Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
Model Description
TR2-CY TrueVIS INK Cyan, 500 cc
TR2-MG TrueVIS INK Magenta, 500 cc
TR2-YE TrueVIS INK Yellow, 500 cc
TR2-BK TrueVIS INK Black, 500 cc
TR2-CL2 TrueVIS Cleaning Liquid, 500 cc
VW-S1 Densitometer tool
ZEC-U5032 Cutting blade for standard sign vinyl, 2pcs.
ZEC-U5025 Cutting blade for standard sign vinyl, reflective and fluorescent / thick media, 5pcs.
XD-CH3 Adjustable blade holder - resin
XD-CH4-BL Adjustable blade holder - black
XD-CH4-OR Adjustable blade holder - orange
XD-CH4-RD Adjustable blade holder – red
Roland DG Care
Roland DG Care

Protect Your Investment

Take your business forward with complete peace of mind thanks to Roland DG’s renowned post-sale service. Roland DG Care warranties cover you for much more than device maintenance.

  • Factory-trained service engineers
  • Quick installation and first-time set-up
  • Expert advice and training
Roland DG Logo
Roland DG Logo

Why Choose Roland DG?

People buy Roland DG equipment because they know it will do what they need it to do - and more. Our mission is to bring new opportunities to society through digital technology, and we aim to develop the most reliable solutions in the industry.

  • More than 40 years of trusted technical excellence.
  • Robust, flexible technology and repeatable results.
  • Unparalleled post-sales service and support.

Get in touch today and find out why Roland DG is the first choice for print businesses worldwide.
