Versatility at
Full Velocity

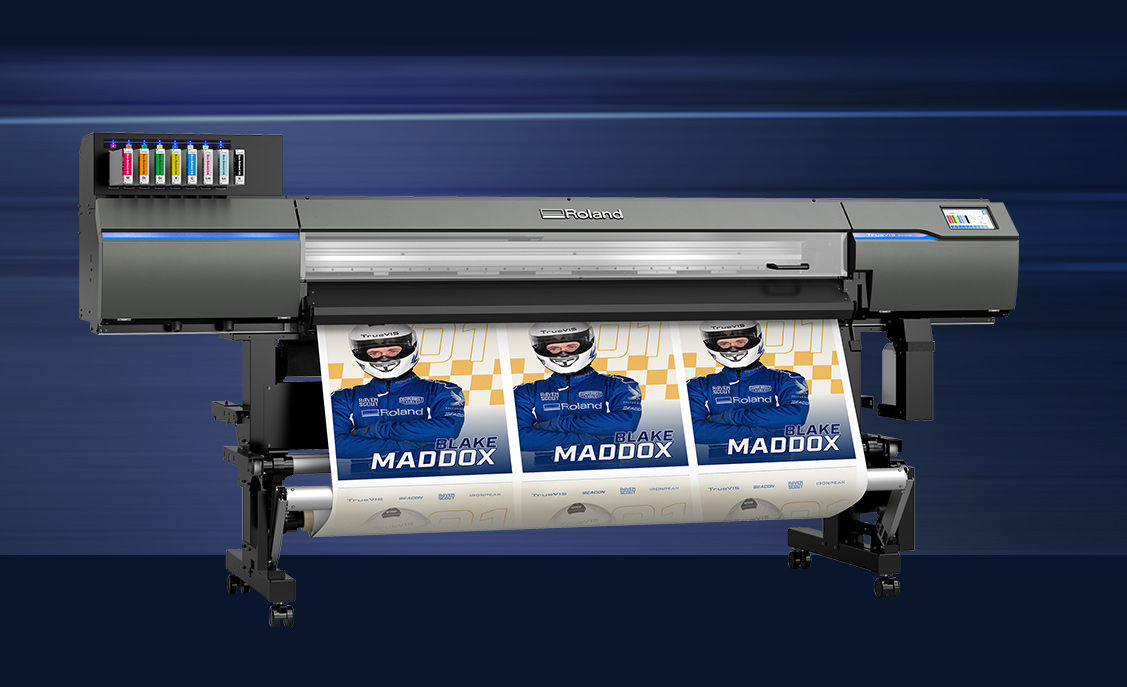

TrueVIS XG-640NEW Large-Format Eco-Solvent Printer/Cutter
The next-generation XG-640 combines impressive print speed and precision contour cutting with stunning image quality that only a TrueVIS device can deliver. Get ready to experience a whole new level of print-and-cut productivity, versatility, and reliability.
- Roland DG’s most productive integrated printer/cutter to date – nearly twice as fast as the VG3-640.
- Advanced dual staggered printheads allow for top print speeds of up to 15.2 m2/h (8-colour mode).
- Exceptional vibrancy with new TR3 eco-solvent inks, available in dual CMYK or expanded gamut 8-colour configurations including Orange, Green, and White options.
- Enhanced usability with a 7-inch touch panel, automatic media gap adjustment, and other cutting-edge features designed for ease of use.
One Machine. Every Job. Full Speed.
The XG-640 delivers flawless printing and cutting across a wide range of media, while keeping production running at full throttle.
Pushing the Limits of Performance
Unmatched Productivity & Precision
Two staggered printheads eject finer ink droplets at higher densities for high-resolution output with fewer passes.
Print & Cut Precision
Industry-leading technology with automated pinch rollers for seamless workflow and maximum productivity.
TrueVIS Quality Prints
Unmatched vibrancy thanks to newly designed printheads and True Rich Color print settings.
Ultra-Wide Colour Gamut
New TR3 inks include Orange and Green for unparalleled colour accuracy and vibrancy.
Versatile Applications
Perfect for signage, vehicle wraps, banners, stickers, floor and window graphics, backlit displays, wallpaper, posters, and more.
Smart Automation
Streamline production with automatic media gap adjustment, automatic media settings and other advanced features.
Industry-Leading Productivity
Engineered for speed and precision, the XG-640 sets a new benchmark in productivity. Dual staggered printheads and high-speed data control deliver 15% faster print speeds than competing models - without compromising image quality.
In standard mode, the 8-colour, 8-pass configuration delivers the widest colour gamut at speeds of up to 15.2 m2/h on vinyl. Let it run uninterrupted all night and wake up to high-quality, customer-ready prints in the morning.
Endless Applications
Infinite Possibilities
The XG-640 lets you take on more jobs than ever before, offering unmatched versatility across a wide range of applications.
Everything You Need to Succeed
Grow your business with premium, reliable TrueVIS hardware.
Power your workflow with our most intelligent engine yet.
Get stunning results every time with economical Eco-solvent ink.
Secure your investment with industry-leading support.
Expect Big Things
Roland DG pioneered the world’s first print-and-cut technology, and for over 30 years our advanced print-and-cut solutions have been trusted by users worldwide. The XG-640 continues this legacy, combining cutting-edge innovation and productivity with the reliability professionals expect.
Introducing Our Most Vibrant and Eco-Friendly TrueVIS Inks
New TR3 eco-solvent inks are specially formulated for unrivalled vibrancy and durability. TR3 White ink used with the XG-640 allows for three times greater productivity than TR2 inks used with a VG3 printer/cutter and produces graphic results that are 1.3 times more dense, enhancing window graphics and base coats.
TR3 inks are GBL-free and GREENGUARD Gold certified, for safer, eco-conscious printing. These premium-quality inks are available in a choice of configurations to suit your specific needs – dual CMYK for increased speed, or 8-colour (Orange, Green, Light Cyan, Light Magenta, and White) for an expanded gamut and greater colour accuracy.
TrueVIS XG-640Highlighted Features
COLOUR LCD SCREEN FOR QUICK SETUP AND MONITORING
The XG-640’s built-in 7-inch colour LCD touchscreen control panel provides quick, intuitive access to important printer functions and information. With the touch of a button, you can get an update on remaining ink levels, printer status, print time, and more.
AUTOMATIC MEDIA TAKE-UP SYSTEM
Longer, unattended print runs are simple thanks to the XG-640’s automatic media take-up system. Simply move the end of the media to the position of the tube on the take-up unit using the control panel and secure it in place.
ADD PERFORATIONS FOR QUICK AND EASY SEPARATION
The XG-640’s new perforated sheet cut function makes it easy to add perforations for high-volume print jobs. This feature eliminates cutting tools and reduces post-processing work, saving space and minimising the risk of output damage.
Compare Our High Productivity
Large-format Printers
Printer/Cutter
CMYKLcLmOrGr
Seven Colours
CMYKOrGr and White
(2 cartridges)
Four Colours
CMYK
New Dual Staggered Printheads
Expanded Colour Gamut
New TR3 Eco-Solvent Inks
Printer
CMYKLkOrGrRd
Four Colours
CMYK
New Dual Staggered Printheads
Expanded Colour Gamut
New TH Eco-Solvent Inks

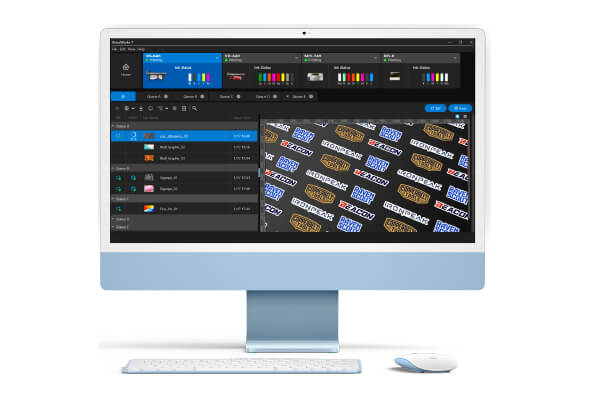

Powerful Software Included
The TrueVIS XG-640 comes with Roland DG's advanced software solutions. Developed specifically for Roland DG, our fast and flexible software gives you all you need to produce your work, your way.
For the Future
With over 28.000 users worldwide, TrueVIS perfectly embodies
Additional Information
Specifications
| XG-640 | ||
|---|---|---|
| Printing method | Piezo ink-jet method | |
| Media | Width | 335 to 1,625 mm |
| Thickness | Max. 1.0 mm with liner, for printing Max. 0.4 mm with liner and 0.22 mm without liner, for cutting |
|
| Roll outer diameter | Max. 250 mm | |
| Roll weight | Max. 45 kg | |
| Core diameter | 76.2 mm or 50.8 mm | |
| Printing/cutting width (*1) | Max. 1,600 mm | |
| Ink | Type | Eco-Solvent Ink (TR3) 500 ml cartridge (only white 220 ml) |
| Colours | Eight colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Orange, and Green) Seven colours (Cyan, Magenta, Yellow, Black, Orange, Green, and White (2 cartridges)) Four colours (Cyan, Magenta, Yellow, and Black) |
|
| Printing resolution (dots per inch) | Max. 1,800 dpi | |
| Cutting speed | 10 to 300 mm/s | |
| Blade force (*2) | 30 to 500 gf | |
| Blade | Type | Roland CAMM-1 series blade |
| Offset | 0.000 to 1.500 mm | |
| Software resolution (when cutting) | 0.025 mm/step | |
| Media heating system (*3) | Print heater set temperature: 30 to 45 °C Dryer set temperature: 30 to 55 °C |
|
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |
| Power-saving function | Automatic sleep feature | |
| Rated input | 100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A | |
| Power consumption | During operation | Approx. 1,180 W |
| Sleep mode | Approx. 50 W | |
| Acoustic noise level | During operation | 66 dB (A) or less |
| During standby | 56 dB (A) or less | |
| Dimensions (Width x Depth x Height) | 2,886 mm × 748 mm × 1,415 mm | |
| Weight | 196 kg | |
| Environment | During operation (*4) | Temperature: 20 to 32 °C, humidity: 35 to 80 % RH (no condensation) |
| Not operating | Temperature : 5 to 40 °C, humidity：20 to 80 % RH (no condensation) | |
| Included items | Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc. | |
| *1 | The length of printing or cutting is subject to the limitations of the application software. |
| *2 |
|
| *3 |
|
| *4 |
Operating environment（Use in an operating environment within this range.）
|
GREENGUARD Gold Certified TR3 Ink
TR3 ink is GREENGUARD Gold certified for indoor air quality.
Protect Your Investment
- Factory-trained service engineers
- Quick installation and first-time set-up
- Expert advice and training
Why Choose Roland DG?
People buy Roland DG equipment because they know it will do what they need it to do - and more. Our mission is to bring new opportunities to society through digital technology, and we aim to develop the most reliable solutions in the industry.
- More than 40 years of trusted technical excellence.
- Robust, flexible technology and repeatable results.
- Unparalleled post-sales service and support.
Get in touch today and find out why Roland DG is the first choice for print businesses worldwide.
