MPX-90S Desktop Metal Printer
Perfect for gift personalisation, the METAZA MPX-90S metal engraving machine is a cost-effective, user-friendly way to mark gold, steel, silver, titanium, brass and aluminium.
- Small investment, big profit
- Compact footprint
- Engrave photos precisely
Featuring a selection of compact, easy-to-use and affordable solutions, the VersaSTUDIO range brings professional Roland DG quality to entrepreneurs and small businesses.
The MPX-90S lets you create a wide range of custom engraved products easily and quickly. Simple to use without special expertise and filled with profit-making potential, this is a perfect solution to start your venture into personalisation with very little initial capital.
*figures for illustration only
Less Space - More Opportunity

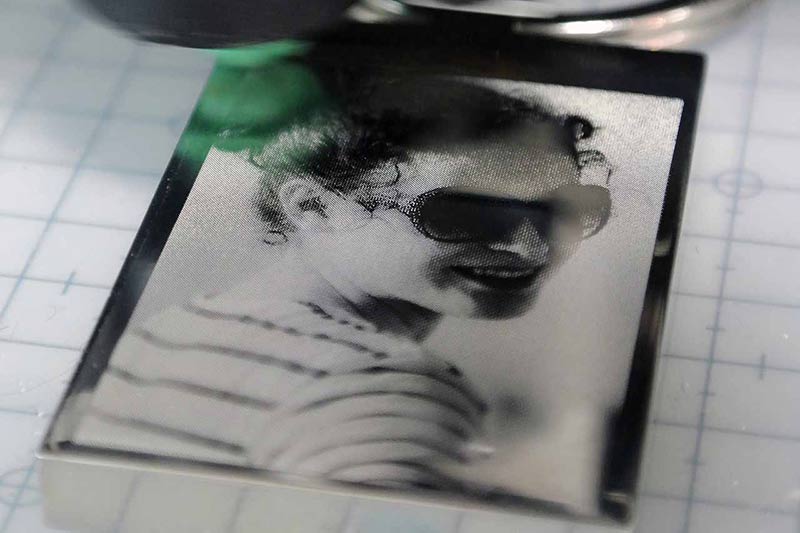

Engrave Photos on Metal
With the MPX-90S solution, you have everything you need to print text, logos and even photos onto metal items. In a matter of minutes, you can turn inexpensive blank items into highly desirable and lucrative products.
Great Return on Investment
Quickly create high-quality products with a generous mark up.
|The Roland DG Legacy
Make a safe investment with Roland DG’s world-renowned quality and reliability.
The device generates no shavings or dust and does not produce odours or smoke.
Fast Set-up and Ease of Use
Plug in and start working immediately thanks to Roland DG’s user-friendly interface.
Intuitive Software Included
METAZA Studio included, letting you easily create designs and engrave in a simple workflow.
Light and Portable
Easily set up the device in any permanent space or take it to events for instant item marking.
The Complete Solution
With the MPX-90S, you get more than just a device - you get everything you need to succeed.

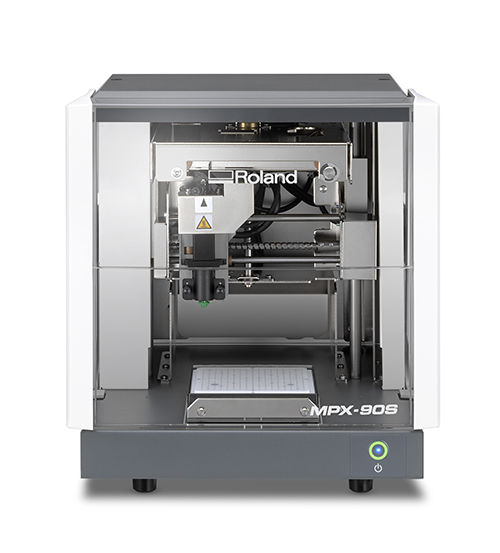

MPX-90S Metal Printer
Go even further with our latest desktop metal engraver*
METAZA Studio Software
Power your personalisation with this user-friendly software
Roland DG Care Warranty
Secure your investment with industry-leading support
Mark a wide range of objects safely and securely
|Imprintable material||Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, etc. *1|
|Loadable material size (width) × (length) × (thickness)
|Max. 100 mm × 200 mm × 40 mm|
||Max. 80 mm × 80 mm
|Resolution||High resolution||529 dpi|
|Imprint direction||Unidirectional imprinting or bidirectional imprinting *2|
|Imprint speed (Default)||High resolution||33 mm/sec|
|Power requirements||Dedicated AC adapter||Input||100 to 240 VAC, 50/60 Hz|
|Output||19 VDC, 2.1 A|
|Rated current||1.6 A
|Power consumption||Approx. 24 W|
|Operating noise||70 dB (A) or less|
|Operating environment||Temperature: 10 to 30°C (50 to 86°F), humidity: 35 to 80%RH (no condensation)|
|External dimensions (width) × (depth) × (height)
||286 mm × 383 mm × 308 mm (11.26 in. × 15.08 in. × 12.13 in.)|
|Included items||AC adapter, power cord, test-use imprinting material, USB cable, Safety Precautions, etc.|
*1 Vickers hardness [HV] of the imprinting surface must be 200 or less.
*2 Selectable with Windows driver
System Requirements for USB Connection
|Computer||Model preinstalled with Windows 11, 10, or 8.1 (32- or 64-bit), or upgraded computer originally preinstalled with Windows 8.1 or later|
|Use the included USB cable.|
Protect Your Investment
- Factory-trained service engineers
- Quick installation and first-time set-up
- Expert advice and training
Why Choose Roland DG?
People buy Roland DG equipment because they know it will do what they need it to do - and more. Our mission is to bring new opportunities to society through digital technology, and we aim to develop the most reliable solutions in the industry.
- More than 40 years of trusted technical excellence.
- Robust, flexible technology and repeatable results.
- Unparalleled post-sales service and support.
Get in touch today and find out why Roland DG is the first choice for print businesses worldwide.
